Specifications
Power Amplifier
Number of Powered Channels
|
9 |
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
|
|
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)
|
125 W |
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
|
165 W |
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)
|
235 W |
70% Guarantee
|
Yes |
Discrete Power Amplifier
|
Yes |
Amplifier Topology
|
Class A/B |
Current Feedback Topology
|
Yes |
Bi-Amp Drive
|
assignable |
Multichannel Surround Technologies
DTS
|
DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
Dolby
|
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
Other
|
IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2 |
Max Number of Processing (Preamp) Channels
|
11.4 |

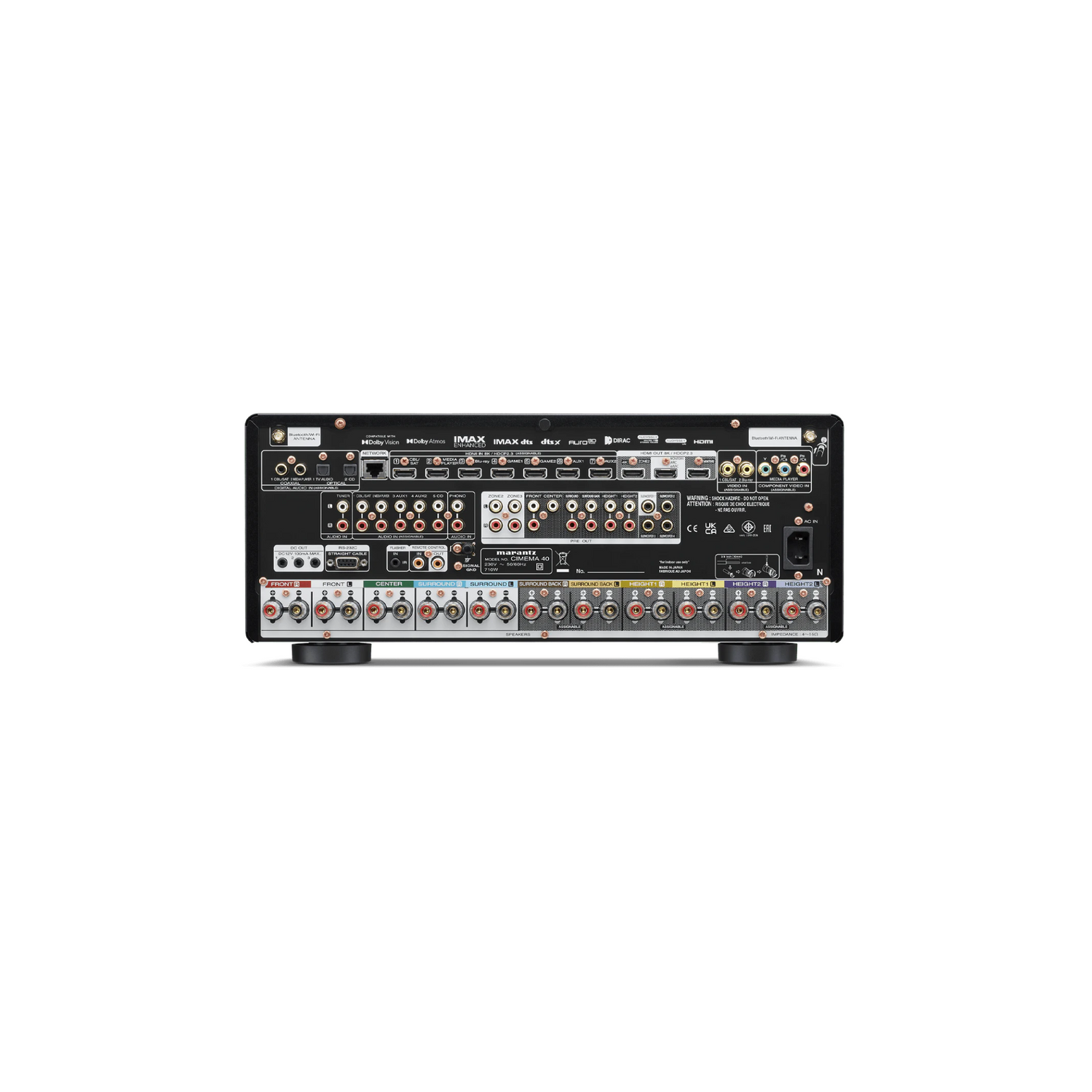

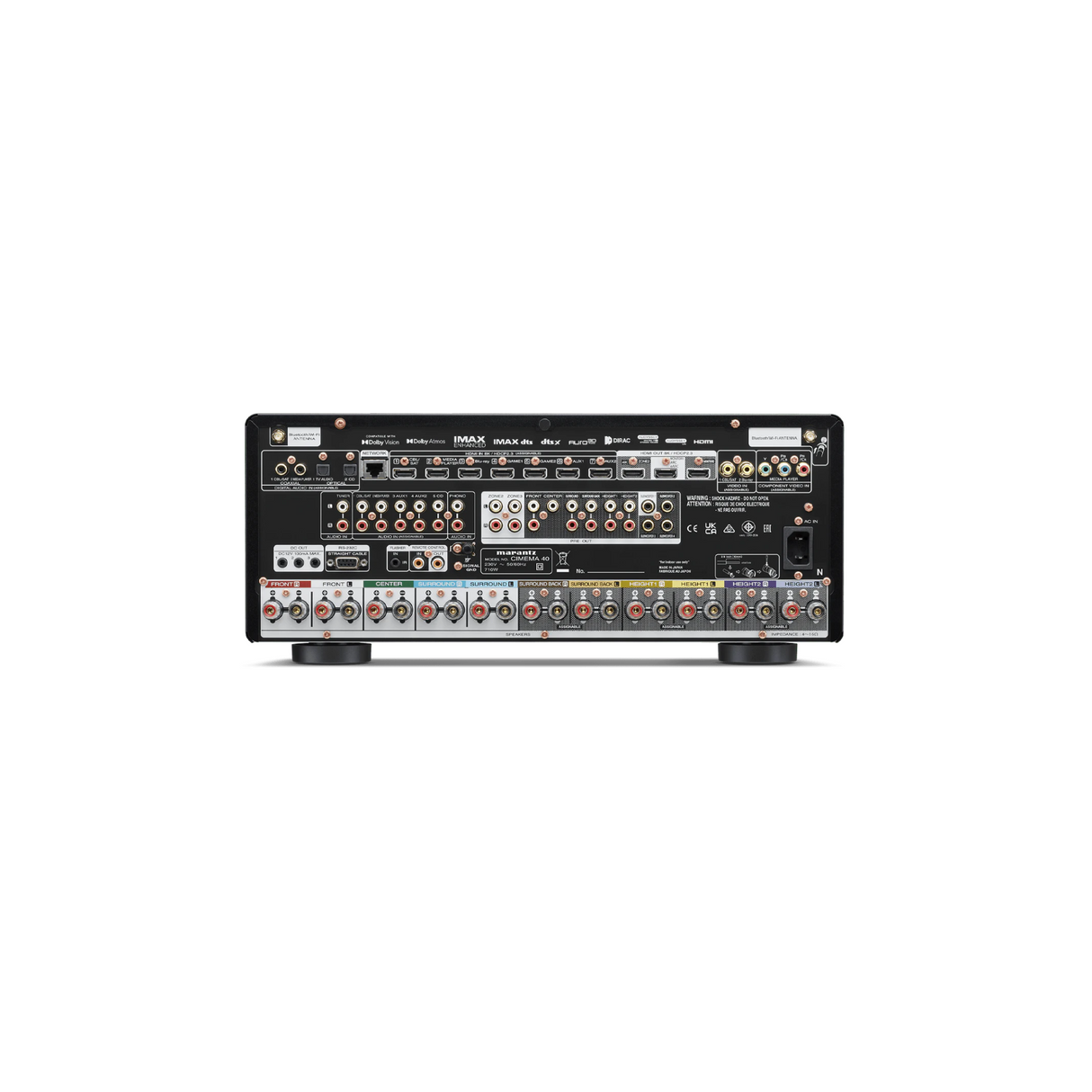

Inputs/Outputs
Composite In / Out
|
2 / 0 |
Component In / Out
|
1 / 0 |
HDMI In / Out
|
7 / 3 |
Multi-Room Video Out via HDMI
|
Yes |
Analog In / Fixed Level Out
|
5 in / 0 out |
Phono (MM) In
|
Yes |
Digital In: Optical / Coaxial
|
2 / 2 |
Multi-Room Out: analog / digital
|
2 / 0 |
Multichannel Preamp Out
|
11.4 |
Subwoofer Out
|
4 (independent) |
7.1 multichannel input
|
No |
Number of Speaker Terminals
|
11 |
Speaker A / B
|
assignable |
Multi-Room Speaker Terminal
|
assignable |
Front Inputs
|
USB-A |
USB Audio / Made for iPod / Made for iPhone
|
Yes / No / No |
AM/FM Tuner
|
Yes |
HDMI
Total HDMI Inputs / No. Support 8K
|
7 / 7 |
HDCP2.3 support
|
Yes |
HDMI Outputs: Main / Zone
|
2 / 1 |
Analog to HDMI Video Conversion
|
Yes |
HDMI Upscaling
|
1080P/4K to 8K |
Max resolution @ framerate
|
8K @ 60Hz, 4K @ 120Hz |
Audio Return Channel
|
ARC, eARC |
Video Dynamic Range
|
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
ALLM (Auto Low Latency Mode) Pass-through for gaming
|
Yes |
Variable Refresh Rate / Quick Frame Transport
|
Yes / Yes |
HDMI Pass-Through in Standby Mode
|
Yes |
CEC
|
Yes |
DSD Audio over HDMI
|
Yes |
Auto LipSync
|
Yes |
Performance Technologies
Copper Plated Chassis
|
No |
Toroidal Power Supply Transformer
|
No |
Hyper Dynamic Amplifier Modules (HDAM) (List version)
|
Yes |
Pure Direct Mode
|
Yes |
Gold Plated RCA Terminals
|
Yes |
Clock Jitter Reducer
|
No |
Acoustic / Room Correction
Audyssey
|
MultEQ XT32 |
Audyssey Dynamic EQ / Dynamic Volume
|
Yes / Yes |
Audyssey LFC
|
Yes / Yes |
Dirac Live Upgradability
|
Yes |
Variable Cross Over
|
Yes |
Optimized Bass Redirection
|
Yes |
Bass Sync
|
Yes |
Music File Support
Lossy Formats
|
MP3 / WMA / AAC |
Lossless formats
|
FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
DSD Audio
|
2.8MHz / 5.6MHz |
Gapless Playback
|
FLAC, WAV ,ALAC ,DSD |
Compressed Audio Enhancer: MDAX2
|
Yes |
Network Audio Sharing
|
Yes |
Streaming Services
HEOS Multi-room and Streaming
|
Yes |
AirPlay Audio Streaming
|
AirPlay 2 |
Internet Radio
|
TuneIn |
Spotify*
|
Spotify Connect |
Pandora
|
Yes |
SiriusXM
|
Yes |
Other Streaming Services *
|
Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix |
Roon tested
|
Yes |
Network Connectivity
Ethernet Ports
|
Yes |
Wi-Fi (include version / band)
|
Yes |
Bluetooth (Include version)
|
Yes |
Bluetooth Re-transmit for Bluetooth headphones
|
Yes |
Smart Home Integration And Control
Voice Assistant Compatibility
|
Alexa / Google Voice Assistant / Apple HomePod |
App for Smart Phones & Tablets (iOS & Android)
|
Marantz AVR Remote App, HEOS |
HEOS Multi-Room Integrated
|
Yes |
HEOS Link Compatibility: IR/ IP
|
Yes /Yes |
Multi-Room zones
|
3 |
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
|
2 Ch / 2 Ch / Yes / Yes |
Zone Audio Output: Speaker / Preout
|
Yes / Yes |
Zone HDMI Output from HDMI Source
|
No |
Control Connectivity
|
IP Control / RS232 Control / Web Control / App Control |
IR Flasher In
|
Yes |
Marantz Remote Bus
|
Yes |
DC Trigger Output
|
3 |
HDMI Diagnostics
|
Yes |
Others

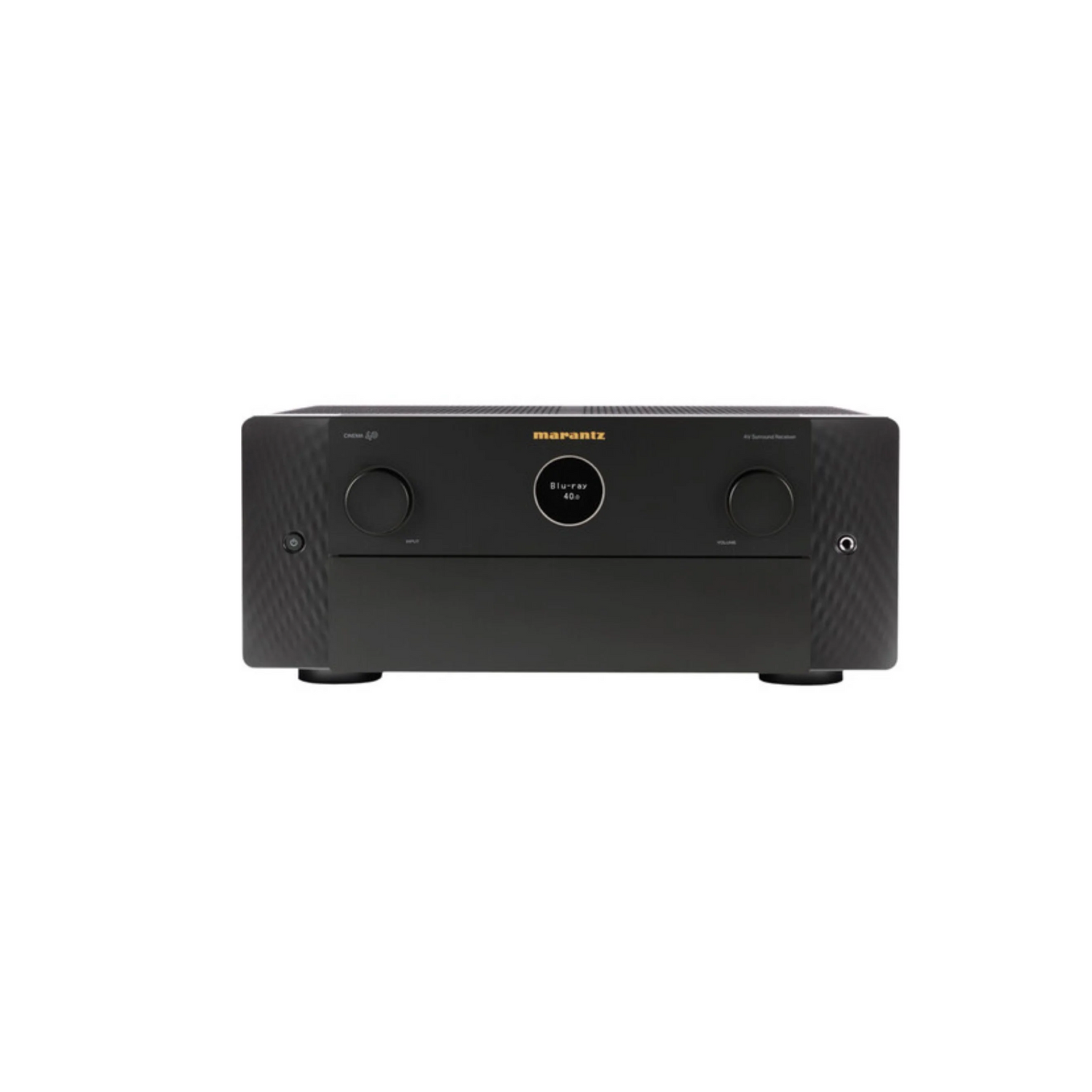

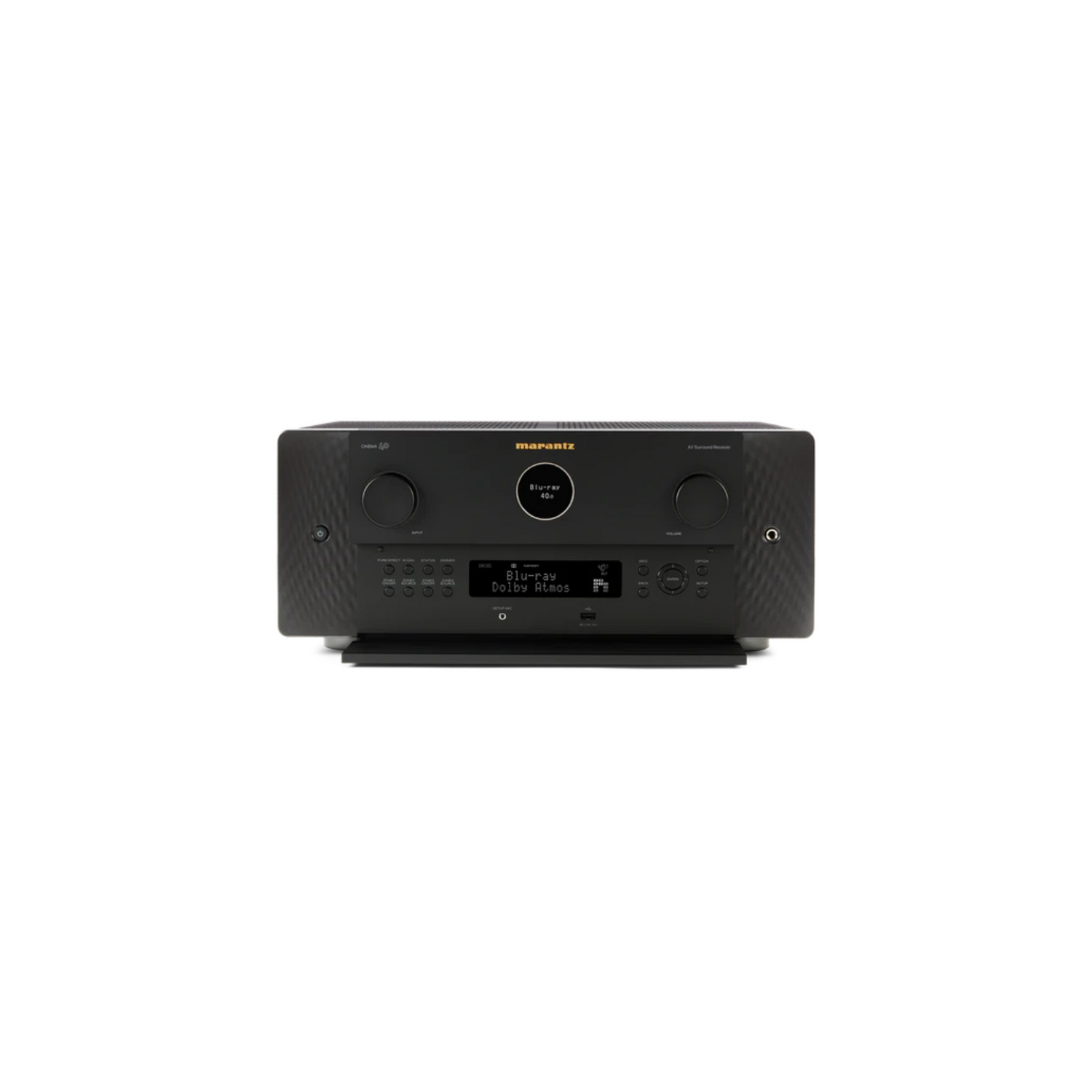

Front Display
|
2 line FLD + port hole OLED |
GUI Languages
|
9 |
Setup Assistant
|
Yes |
Smart Select on Remote
|
Yes |
Firmware Update by Network / USB
|
Yes / Yes |
ECO Mode
|
Yes |
Auto Power off
|
Yes |
Sleep Timer
|
Yes |
General
Metal Front Panel
|
Yes |
System Remote Control
|
RC048SR |
Power Consumption in W
|
710 |
Power Consumption No-Sound (ECO on/off) in W
|
65 / 110 |
Standby Consumption in W
|
0.2 |
CEC Standby Consumption in W
|
0.5 |
Network Standby Consumption in W
|
Less than 2.0 |
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches
|
17.3 x 16.2 x 7.3
17.3 x 16.2 x 10
17.3 x 15.8 x 7.3 |
Weight in lbs.
|
33.3 |
What's in the box
|
Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord |
