Teac AP-505 - 2 Channel Power Amplifier
Rs. 277,000.00
Unit price
/
Unavailable
Tax included
Sale is Live!
- Free Shipping (India)
- Brand New Unit(s)
- Price Includes GST
- Official Manufacturers Warranty
- EMI Payment Option Available
Free Gift Offer
Spend ₹25,000 more to unlock your free gift!
Teac AP-505 - 2 Channel Power Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
No-Cost EMI Offer
No-Cost EMI Offer
Discover the Freedom of Zero-Cost EMI on Purchases above ₹30,000.
Warranty Information
Warranty Information
Experience the Peace of Mind with Official Manufacturers Warranty on Every Product.
Delivery and Shipping
Delivery and Shipping
In general, orders are delivered within 4-6 days. However, in some cases there might be a slight delay.
Description
Description

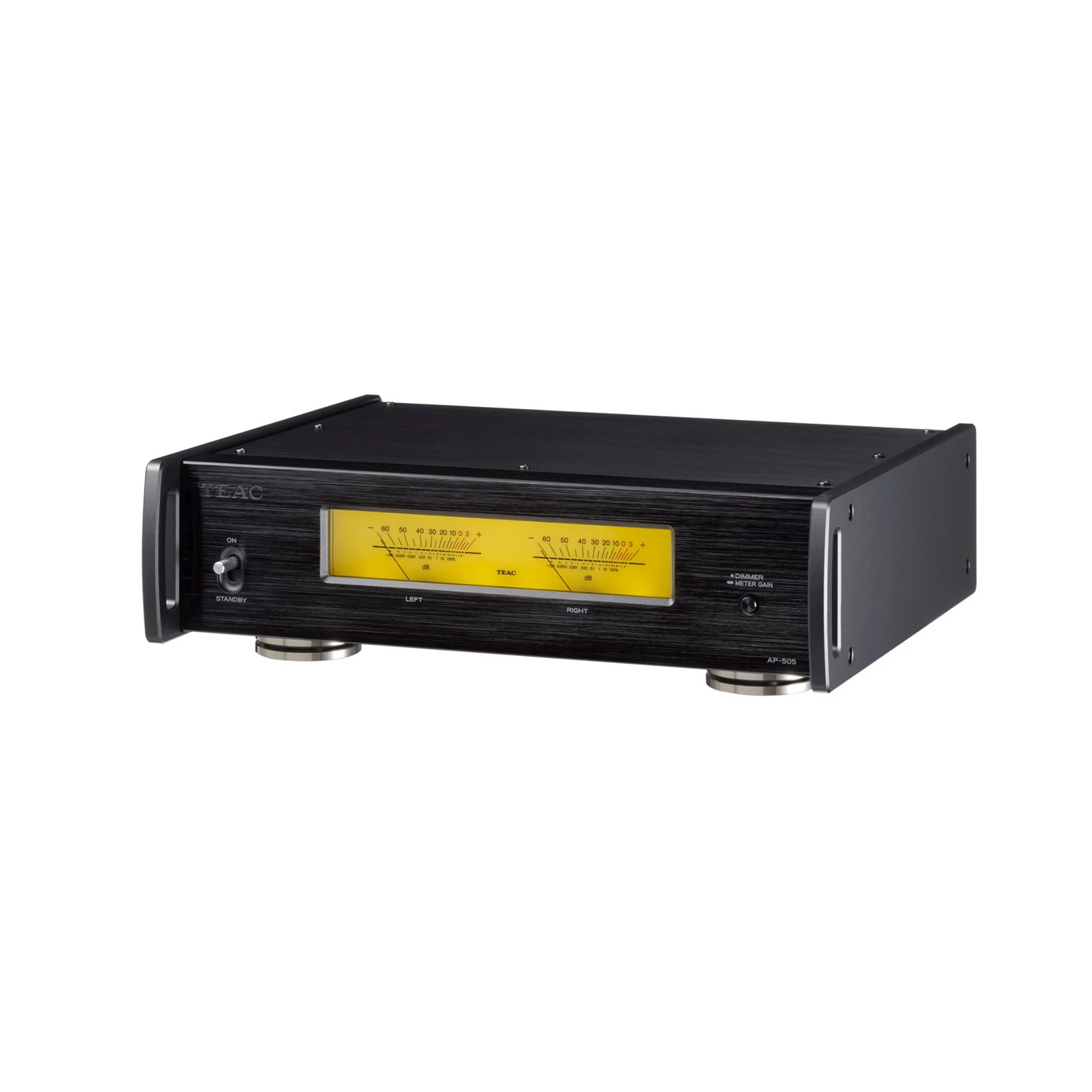

Teac AP-505 – Stereo / Bridged Power Amplifier
High Output Power in Multiple Modes
Offers 130 W + 130 W into 4 Ω or 90 W + 90 W into 8 Ω in stereo or bi-amp mode; when bridged (BTL), delivers 250 W into 8 Ω.
strong>Low Distortion & Wide Frequency Response
THD is about 0.0015% at 8 Ω, 1 kHz, 12.5 W; frequency range spans from 10 Hz up to 50 kHz, giving clean, full spectrum sound.

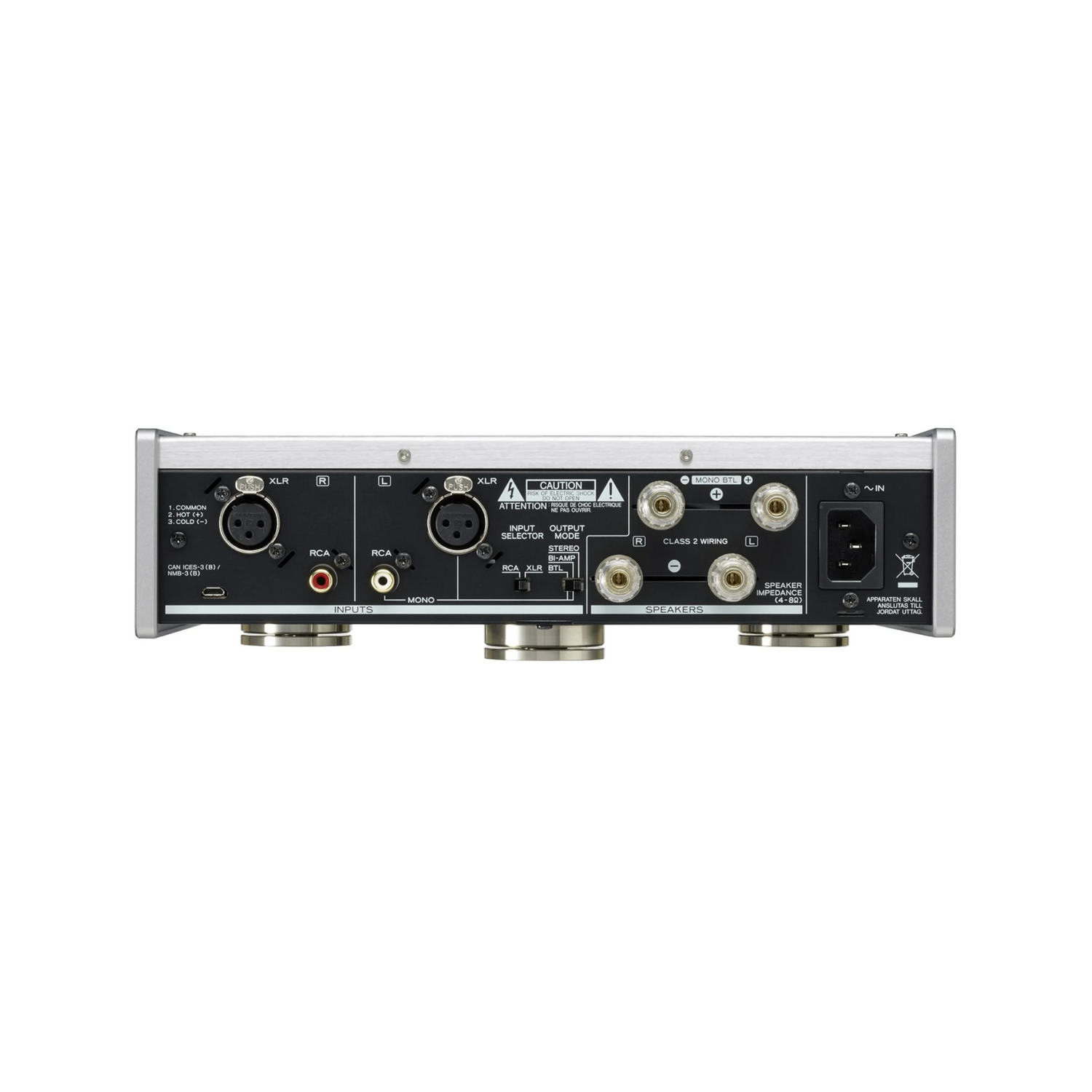

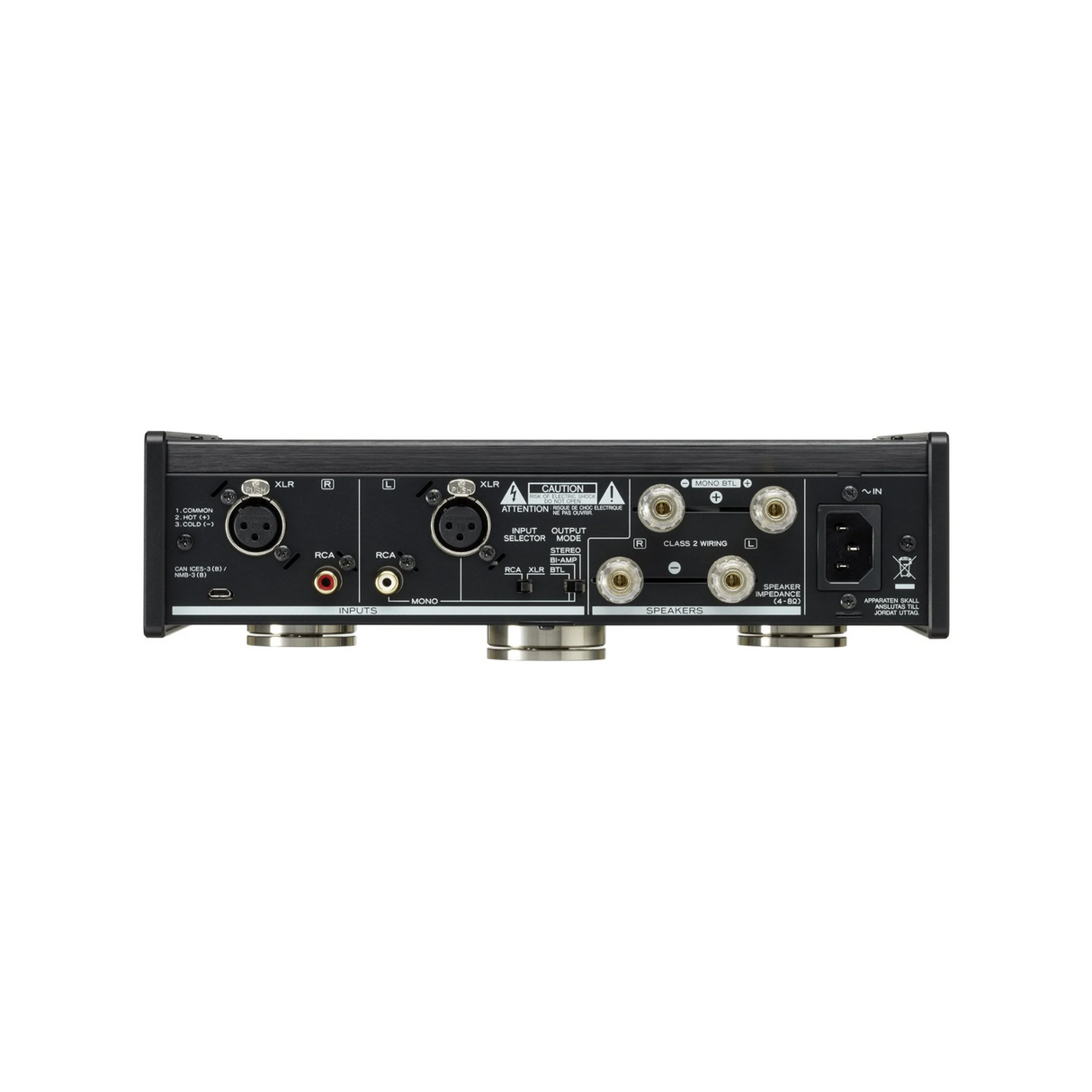

Balanced & Unbalanced Inputs
Includes both XLR (balanced) and RCA (unbalanced) input options to suit different source gear.
Fanless Cooling & Solid Build
Fully cooled via passive means—no fan noise; solid aluminum panels and steel chassis ensure minimal vibration.

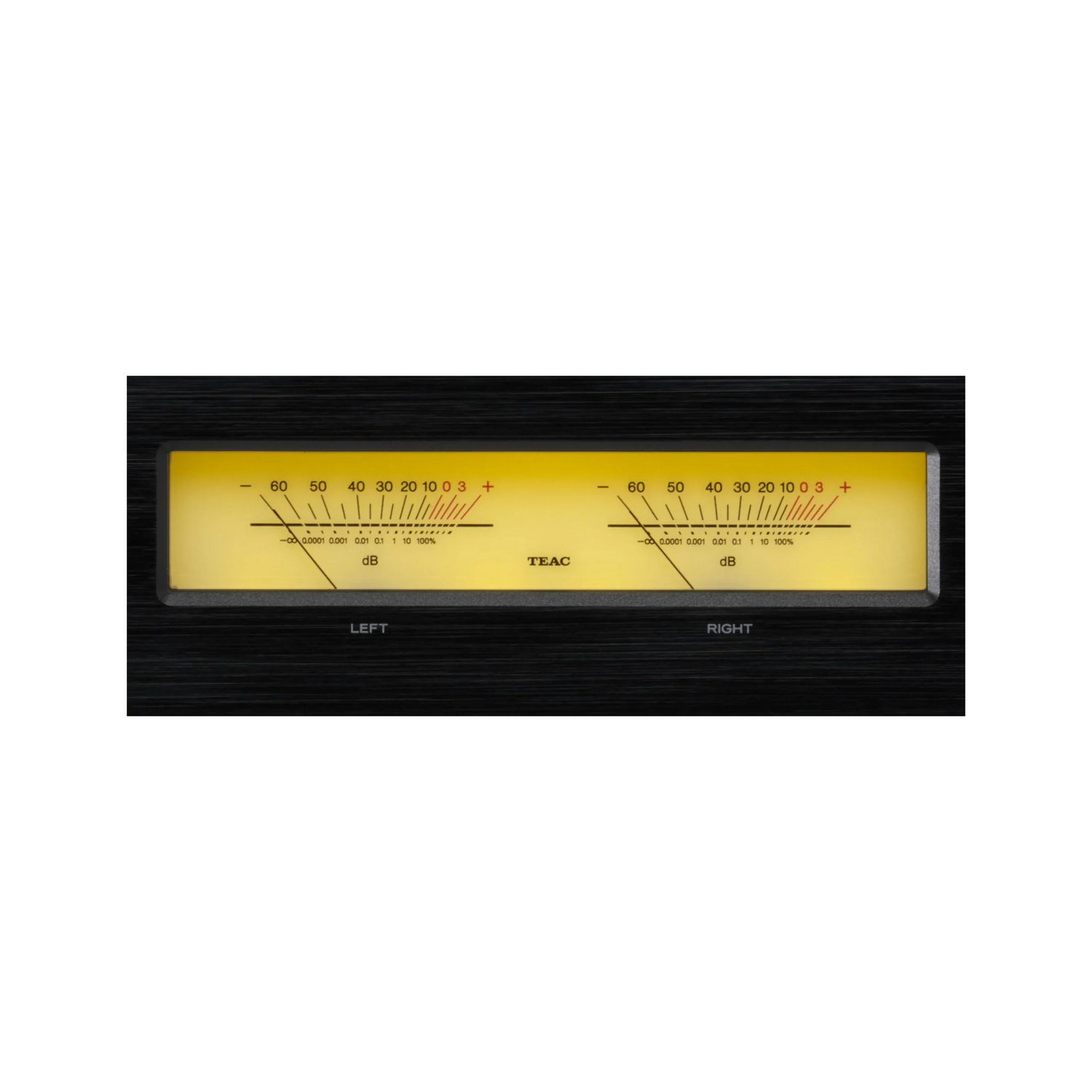

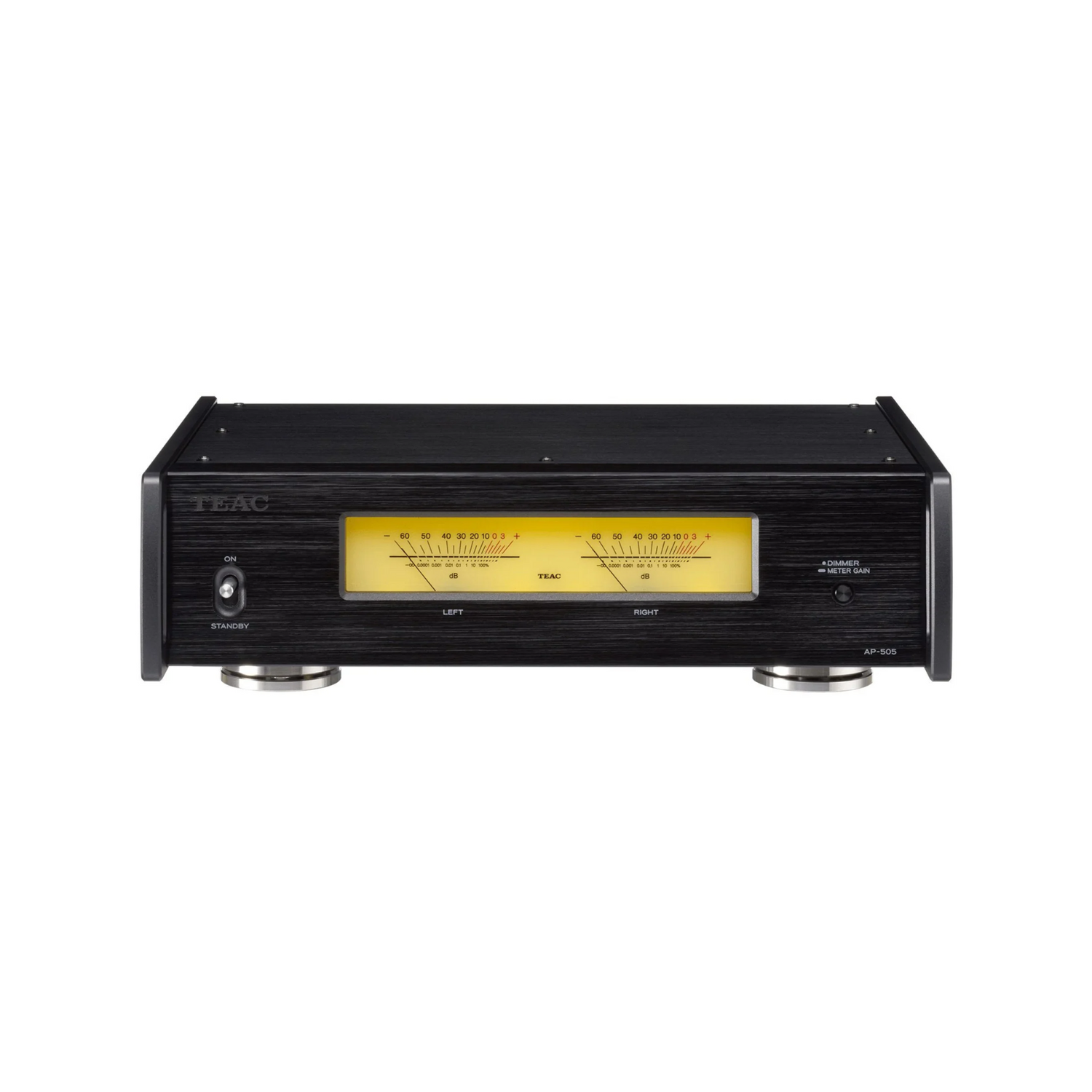

Analog VU Meters & Stylish Design

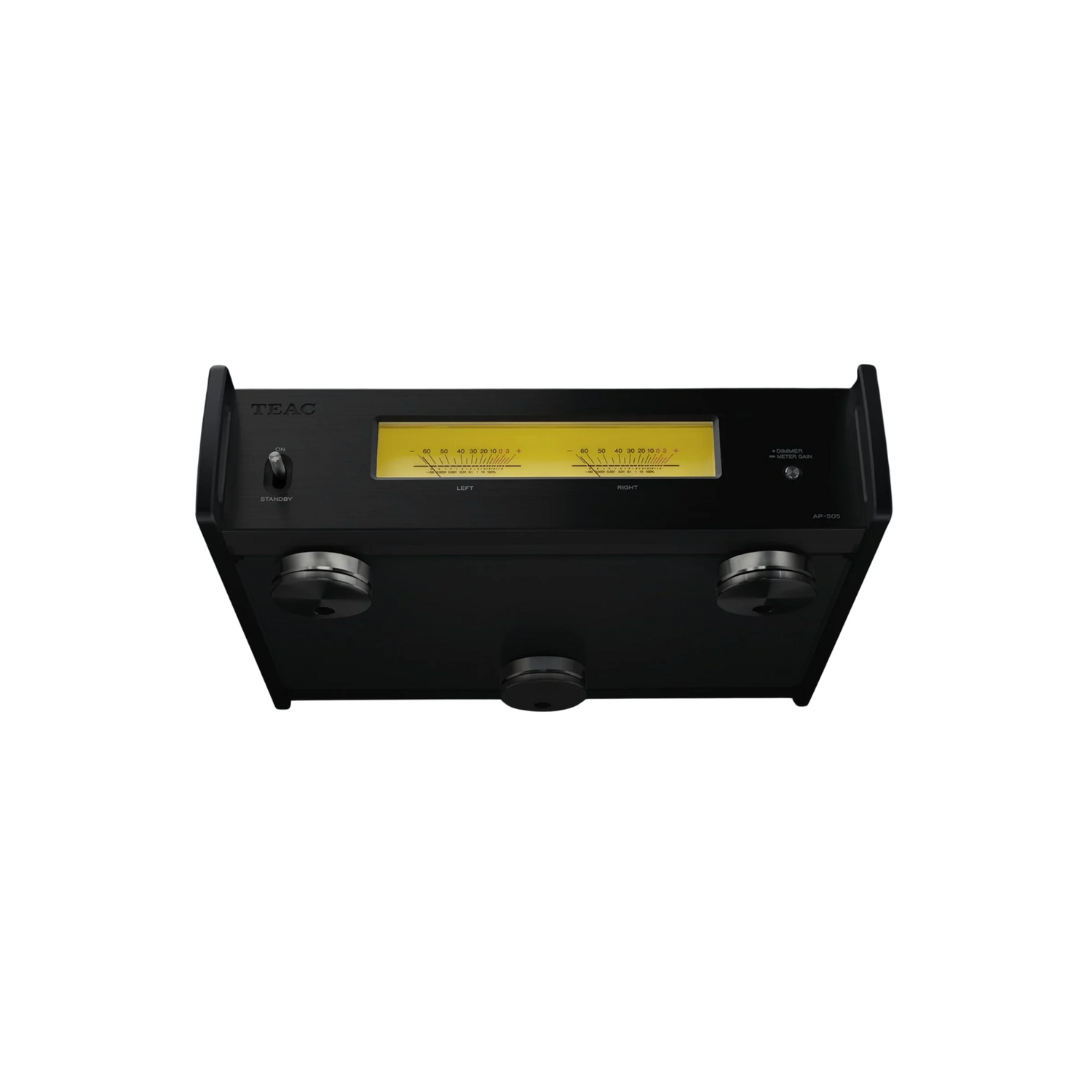

Front panel meters with dimmable lighting, classic look with ‘Pin-Point’ feet to reduce resonance.
Additional Information
Additional Information
Specification
Details
Brand TEAC Model AP-505 Product Type 2-Channel Power Amplifier Amplifier Type Class-D (Hypex Ncore Module) Power Output (Stereo) 130W + 130W (8Ω, 1kHz, THD 0.003%)
170W + 170W (4Ω, 1kHz, THD 0.003%)Power Output (BTL Mono) 250W (8Ω, 1kHz, THD 0.003%) Inputs 1 × Balanced XLR Input, 1 × RCA Line Input Outputs Speaker Terminals (Binding Posts), Trigger In/Out Frequency Response 10Hz – 50kHz (+1, -3dB) Signal-to-Noise Ratio 110 dB (Line In) THD (Total Harmonic Distortion) 0.003% (1 kHz, 8Ω, 1W) Analog Meters Dual Analog VU Meters with Dimmer Control Cooling TEAC Passive Heat Sink Design (No Fan Noise) Power Supply Toroidal-core Transformer, AC 100–240V, 50/60Hz Dimensions 290 × 81.2 × 264 mm Weight 4.2 kg Color/Finish Black / Silver (Aluminum Front Panel with Dual Analog Meters) Package Contents AP-505 Amplifier, Power Cord, User Manual Warranty 1 Year Manufacturer Warranty
