61% off

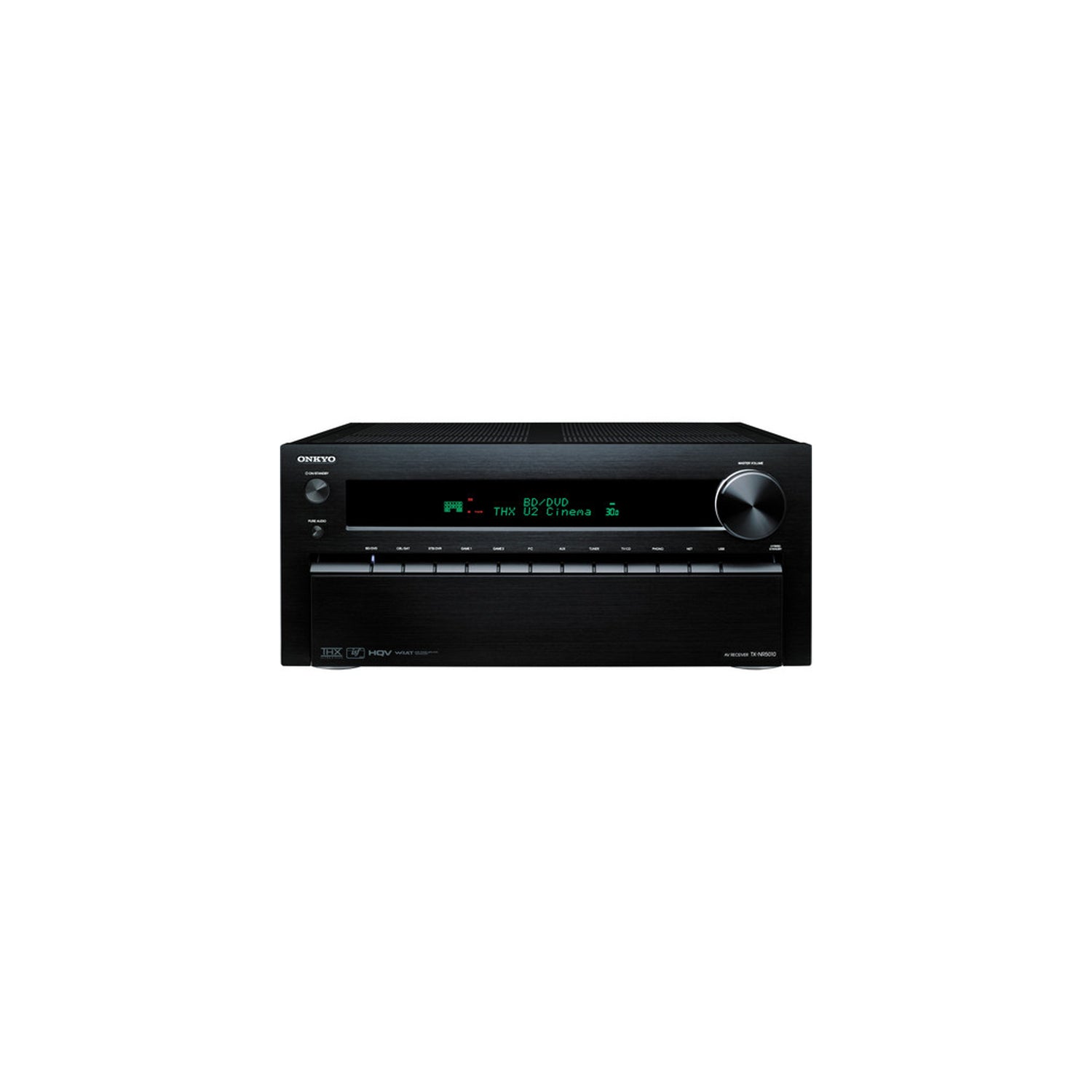

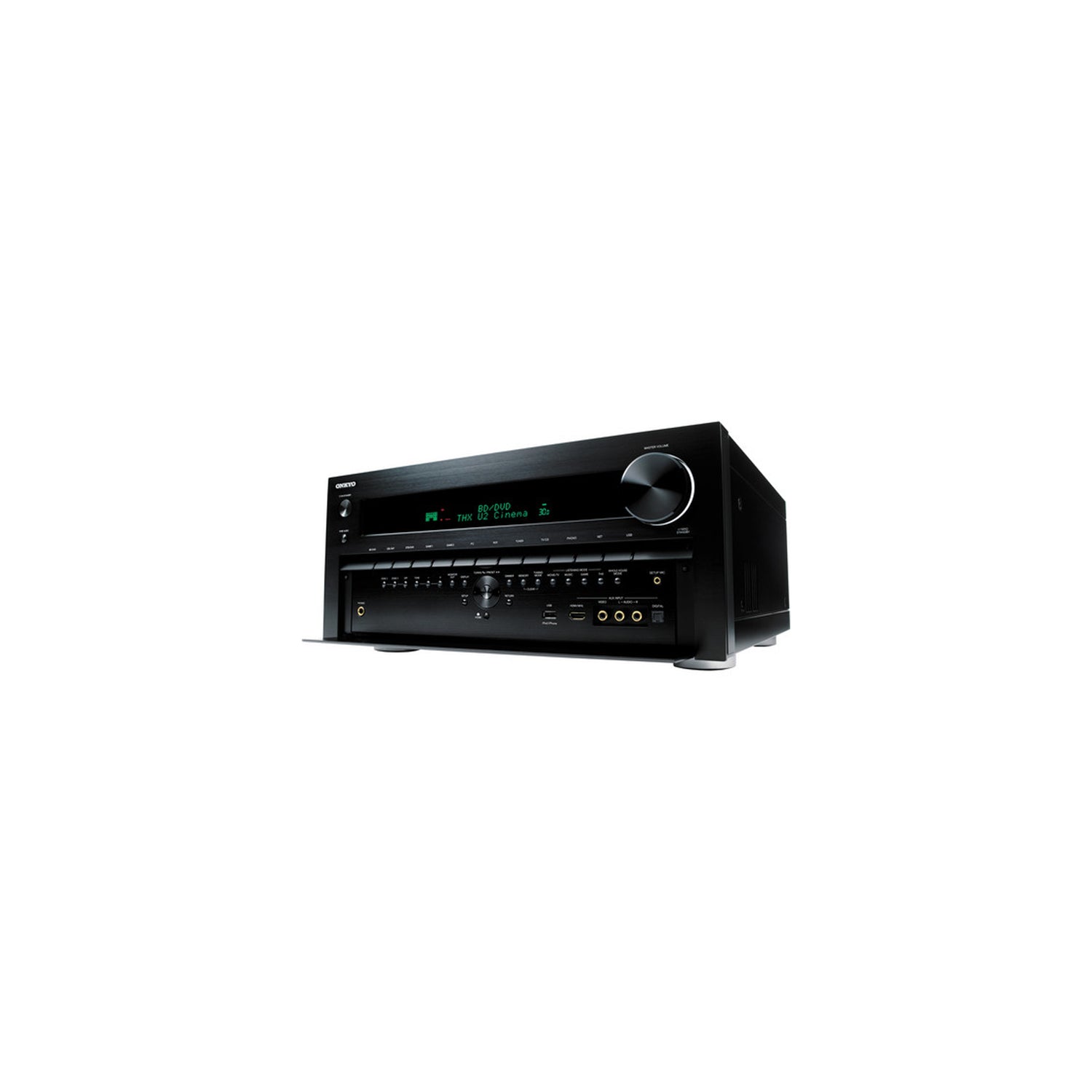

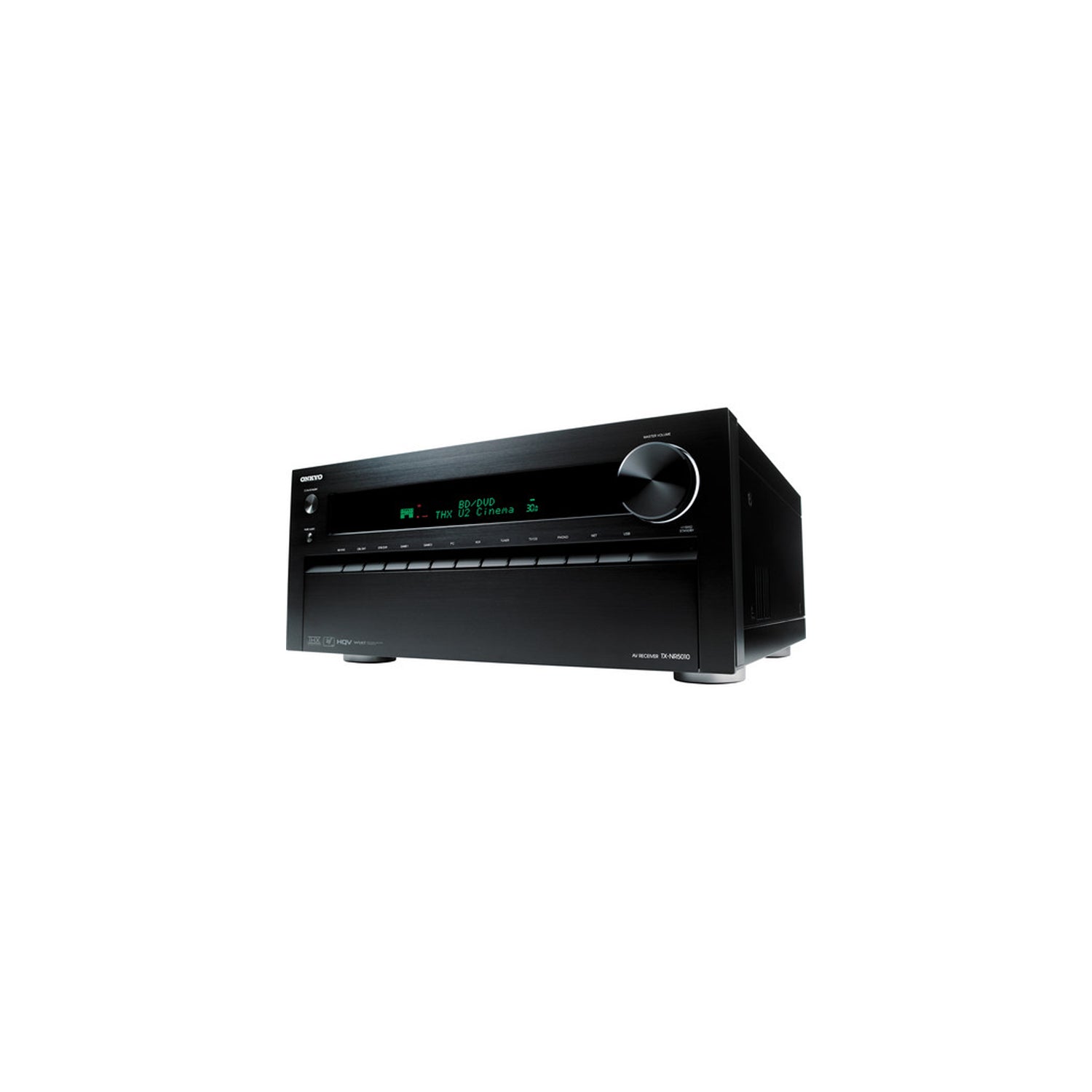

Onkyo TX-NR5010 - 9.2-Channel Network AV Receiver (Demo Unit/Without Box Unit)
Rs. 95,000.00
Rs. 245,000.00
Unit price
/
Unavailable
Tax included
Onkyo TX-NR5010 - 9.2-Channel Network AV Receiver (Demo Unit/Without Box Unit) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
No-Cost EMI Offer
No-Cost EMI Offer
Discover the Freedom of Zero-Cost EMI on Purchases above ₹30,000.
Warranty Information
Warranty Information
Experience the Peace of Mind with Official Manufacturers Warranty on Every Product.
Delivery and Shipping
Delivery and Shipping
In general, orders are delivered within 4-6 days. However, in some cases there might be a slight delay.
Description
Description
Onkyo TX-NR5010 Overview The TX-NR5010 A/V 9.2-Channel Network Receiver from Onkyo has a dual-core video engine design that employs an HQV Vida VHD1900 processor that handles upscaling of your analog content to 1080p. The integrated Marvell Qdeo technology will take your full HD content to 4K resolution. Another technology at work is ISF, which calibrates video from any of the inputs to industry standards.
These include nine HDMI inputs and two HDMI outputs, which supports 3D content and an Audio Return Channel (ARC). These HDMI inputs have what's called Mobile High Definition Link, so if you have a compatible smartphone you can connect it to enjoy 1080p video on your HDTV.
Equipped with two USB ports, the receiver lets you connect your iPod or iPhone for additional choices. It's able to connect to a home network, either through a wired connection or wirelessly with the purchase of Onkyo's LAN adapter (UWF-1)
It also offers A/V processing, Blu-ray and 3D content compatibility plus an array of connections to accommodate both legacy and advanced equipment. It has a variety of interfaces to incorporate all your devices into your home theater setup.
Onkyo TX-NR5010 - 9.2-Channel Network AV Receiver (Demo Unit/Without Box Unit)
Additional Information
Additional Information
Specifications
Power Output
All channels: 145W (8 ohms, 20Hz-20kHz, 0.05%, 2 channels driven, FTC)
Front L/R: 145W (8 ohms, 20Hz-20kHz, 0.05%, 2 channels driven, FTC)
175W + 175W (6 ohms, 1kHz, 0.1%, 2 channels driven, FTC)
Center: 145W (8 ohms, 20Hz-20kHz, 0.05%, 2 channels driven, FTC)
175 W + 175 W (6 ohms, 1kHz, 0.1%, 2 channels driven, FTC)
Surround L/R: 145W (8 ohms, 20Hz-20kHz, 0.05%, 2 channels driven, FTC)
175W + 175W (6 ohms, 1kHz, 0.1%, 2 channels driven, FTC)
Surround back L/R: 145W (8 ohms, 20Hz-20kHz, 0.05%, 2 channels driven, FTC)
175W + 175W (6 ohms, 1kHz, 0.1%, 2 channels driven, FTC)
Dynamic Power
400W (3 ohms, 1 ch)
300W (4 ohms, 1 ch)
180W (8 ohms, 1 ch)
No. of Channels
9.2
THD
0.05% (20Hz-20kHz, rated power)
Damping Factor
660 (Front, 1kHz, 8 ohms)
Input Sensitivity
200 mV/47 kohms (Line)
2.5 mV/47 kohms (Phono MM)
RCA
Maximum RCA output level and impedance: 5.5 V/470 ohms (Pre-out)
Phono Overload
70 mV (MM, 1kHz, 0.5%)
Frequency Range
5Hz-100kHz/+1 dB, -3 dB (Direct Mode)
Tone Control
±10 dB, 50Hz (Bass)
±10 dB, 20kHz (Treble)
SNR
110 dB (Line, IHF-A)
80 dB (Phono MM, IHF-A)
Speaker Impedance
4-16ohms or 6-16ohms
Video
Input sensitivity / Output level and impedance
1 Vp-p / 75ohms (Component)
0.7 Vp-p / 75ohms (Component PB/CB, PR/CR)
1 Vp-p / 75ohms (Composite)
Component video frequency response: 5Hz-100MHz, -3dB
AM/FM Tuner
FM: 87.5-107.9MHz
AM: 530-1710kHz
FM/AM preset memory: 40 stations
THX Certified
Ultra2 Plus
Remote Control
Yes

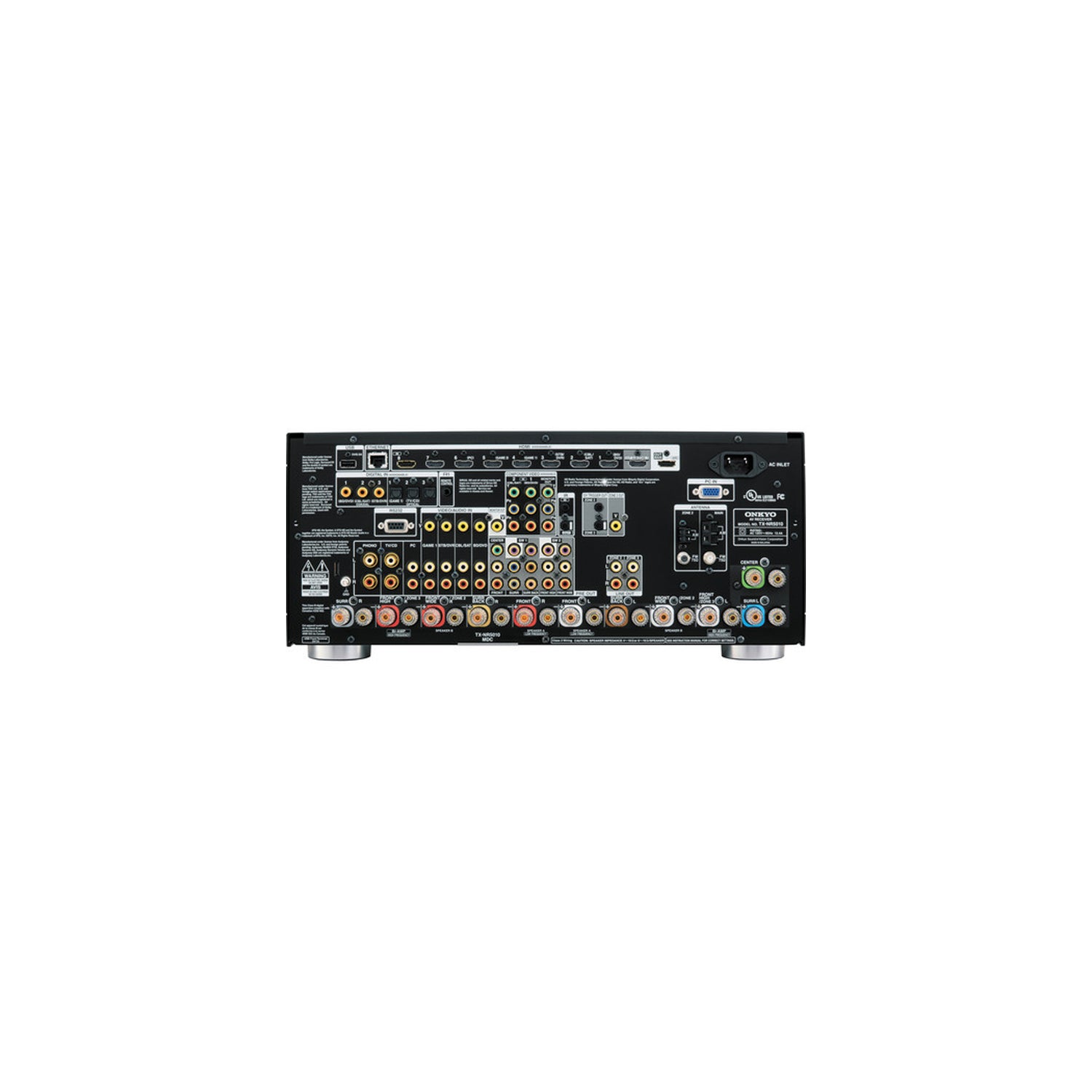

Input/Output
Audio I/O: 8/1
Phono input: Yes
Digital audio in (Optical / Coaxial): 3/3
Composite I/O: 5/1
Component video I/O: 2/1
Front-panel A/V: V/R/L
Front-panel optical: Yes
USB input: Front (made for iPod/iPhone) and rear
HDMI I/O: 9 (7 + 1)/2
HDMI support: 3D video, Audio Return Channel, DeepColor, x.v.Color, LipSync, CEC
Analog To HDMI upconversion: Yes
1080p upscaling: HQV Vida
4K (up to 4096 x 2160) upscaling: Marvell Qdeo
Analog pre-outs: 11.4
Powered Zone2: Yes
Powered Zone3: Yes
Zone 2 line out: Yes
Zone 2 video out: Composite, HDMI
Zone 3 line out
iPod ready: Direct USB input
HD radio: Yes
Internet radio capable: vTuner, Pandora, Spotify, Rhapsody, Sirius/XM iRadio, Slacker, LastFM iRadio, Aupeo, MP3tunes
Streaming audio from PC: Yes
Streaming audio from USB memory: Yes
Wireless network ready via USB: Optional UWF-1
Bluetooth ready via USB: Optional UBT-1
RS-232 x 1
IR input x 1
Ethernet x 1
Onkyo-RI system control: Yes
12V trigger
Power Requirements
AC 120 V, 60Hz
Power Consumption
12.4A
Standby: 0.1W
Dimensions
17.1 x 7.8 x 18.3" (435 x 198.5 x 463.5 mm)
Weight
55.1 lb. (25kg)
Box Dimensions (LxWxH)
23.2 x 23.2 x 12.8"
