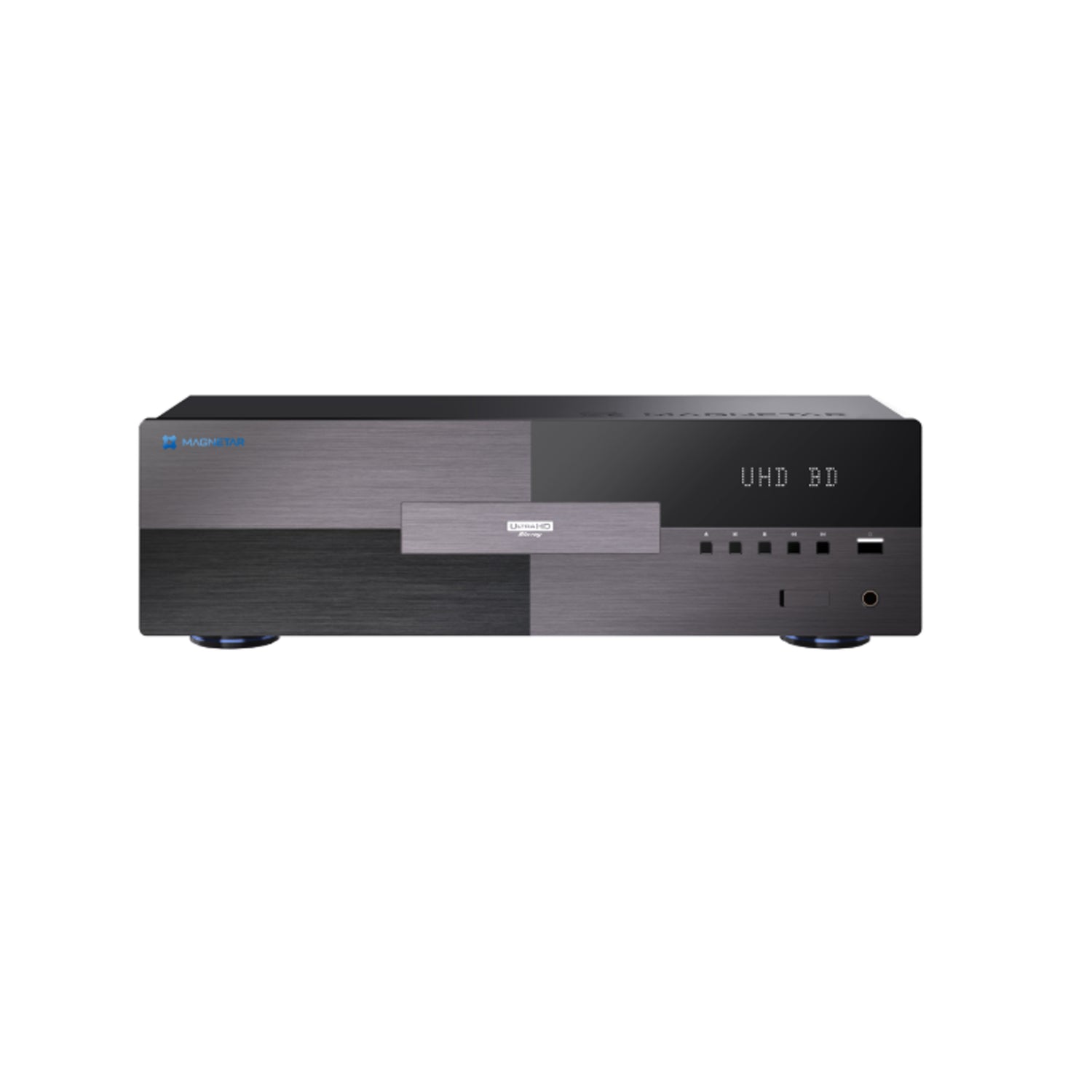

MAGNETAR UDP900

The latest designed 6-layer gold immersion main PCB circuit adopts high-precision, ultra-low noise TCXO temperature compensated crystal oscillator doubling the high precision LDO power supply processing on the UDP800. Murata multilayer ceramic capacitor TDK magnetic devices and 30 NCC electrolytic capacitors further improves audio and video quality.Both audio boards use 4-layer PCB circuit boards, each channel is designed with independent wiring,equipped with high precision, ultra-low phase noise TCXO temperature compensated crystal, oscillator, numerous ELNA, NCC audio capacitors pairing with Red WIMA, ELNA SILMIC II capacitors, and independent high-power linear power supply module equipped with Hi-Fi XLR balanced terminals and gold plated RCA outputs providing for better Audiophile sound quality.

 Elegant and Solid Quality in Chassis Construction

The UDP900 dimensions are 445x321x133mm (including feet) and it weighs 15.5kg. It adopts an all-aluminum alloy body and a reinforced double-layer chassis structure.The internal main components are independently shielded by a metal casing, greatly reducing vibration, noise, and external magnetic field interference to bring pure and high-resolution audio and video quality.

 Present Excellent Picture and Sound

UDP900 supports Dolby Vision and HDR 10+ high dynamic image standards.It features ESS9038PRO D/A decoding for 2-channel XLR balanced and RCA unbalanced outputs, as well as ESS9028PRO D/A decoding for 7.1 RCA output. Additionally, it supports XMOS USB Audio input.

 Wide Range of Media Formats and Connections

UDP900 is fully compatible with a variety of disc formats, including 4K UHD BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD and CD-R/RW. Additionally, it can easily connect to numerous media resources through USB 3.0 and supports up to a 16TB hard drive. It allows for sharing video, music and picture files through DLNA, SMB and NFS protocols while supporting a wide range of media formats such as MKV , AVI , MP4 , WAV , FLAC , APE , DSD etc. It enables users to effortlessly play and manage media files stored locally or on LAN devices.

 Dual Power Supply Design

A 60W toroidal transformer is used to supply power for analog audio. It utilizes an imported magnetic core, high-quality oxygen-free copper wiring, metal shields, and full epoxy filling to reduce vibration noise and heat generation, thereby improving output and audio quality.

 Outputs

 Analog audio characteristics

 General specifications
