Key Features

• 5.25" Woofer and 1" Silk-Dome Tweeter
• 102 dB SPL
• Control Level, HPF, MF Trim, and HF Trim
• XLR, 1/4" TRS, and RCA Connections
• RFI Protection
• 48 Hz to 20 kHz Frequency Response
• EBM Waveguide for a Wide Sweet Spot
• Acoustic Space Filter
• Class-AB Bi-Amplification at 80W
• Output Current Limiting

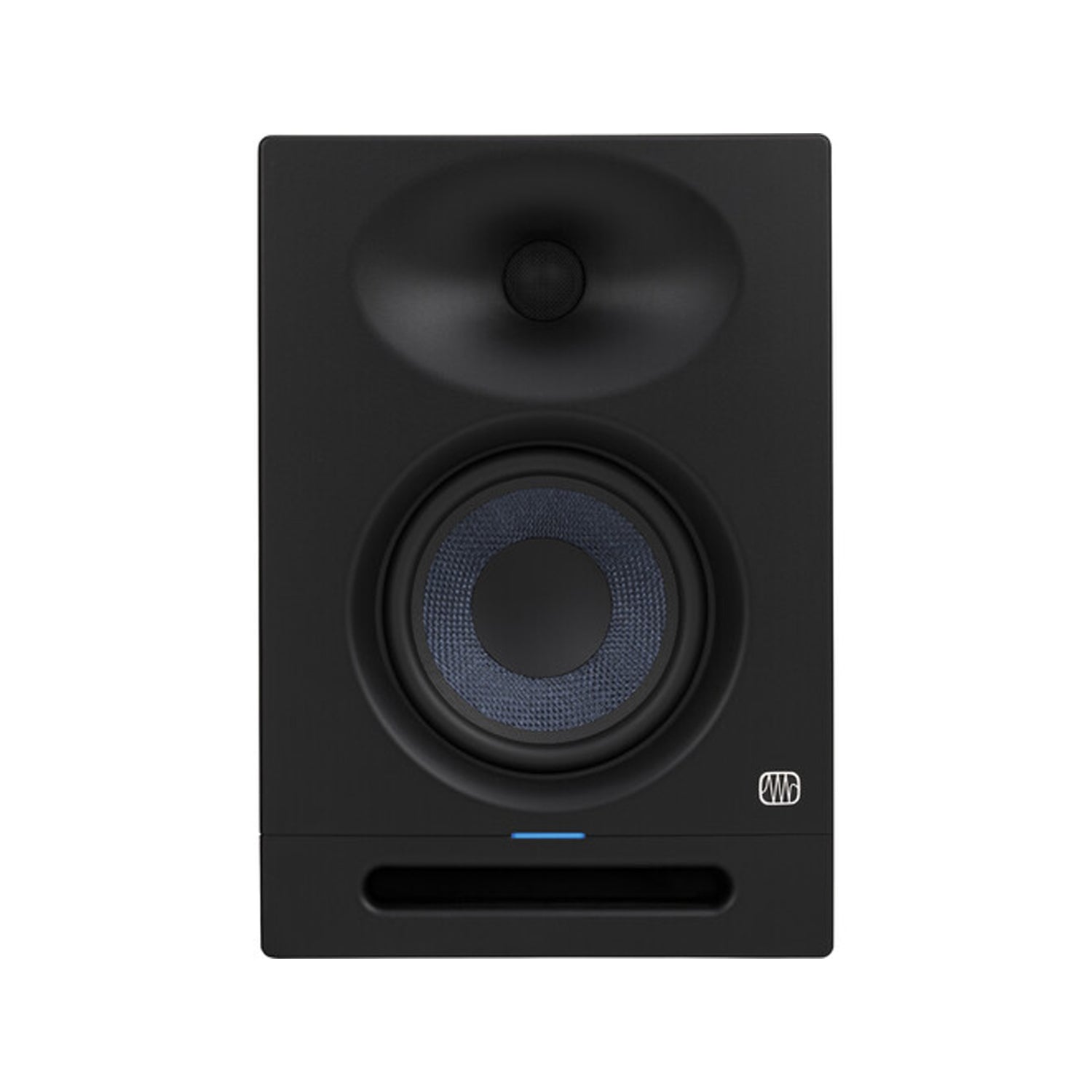

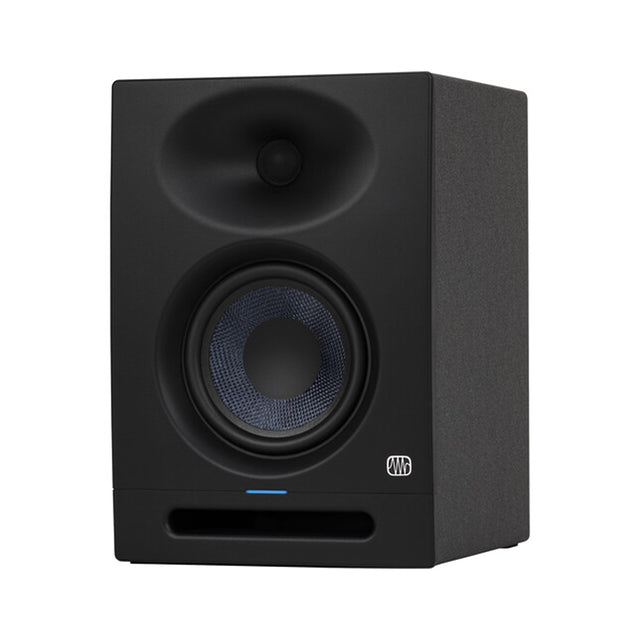

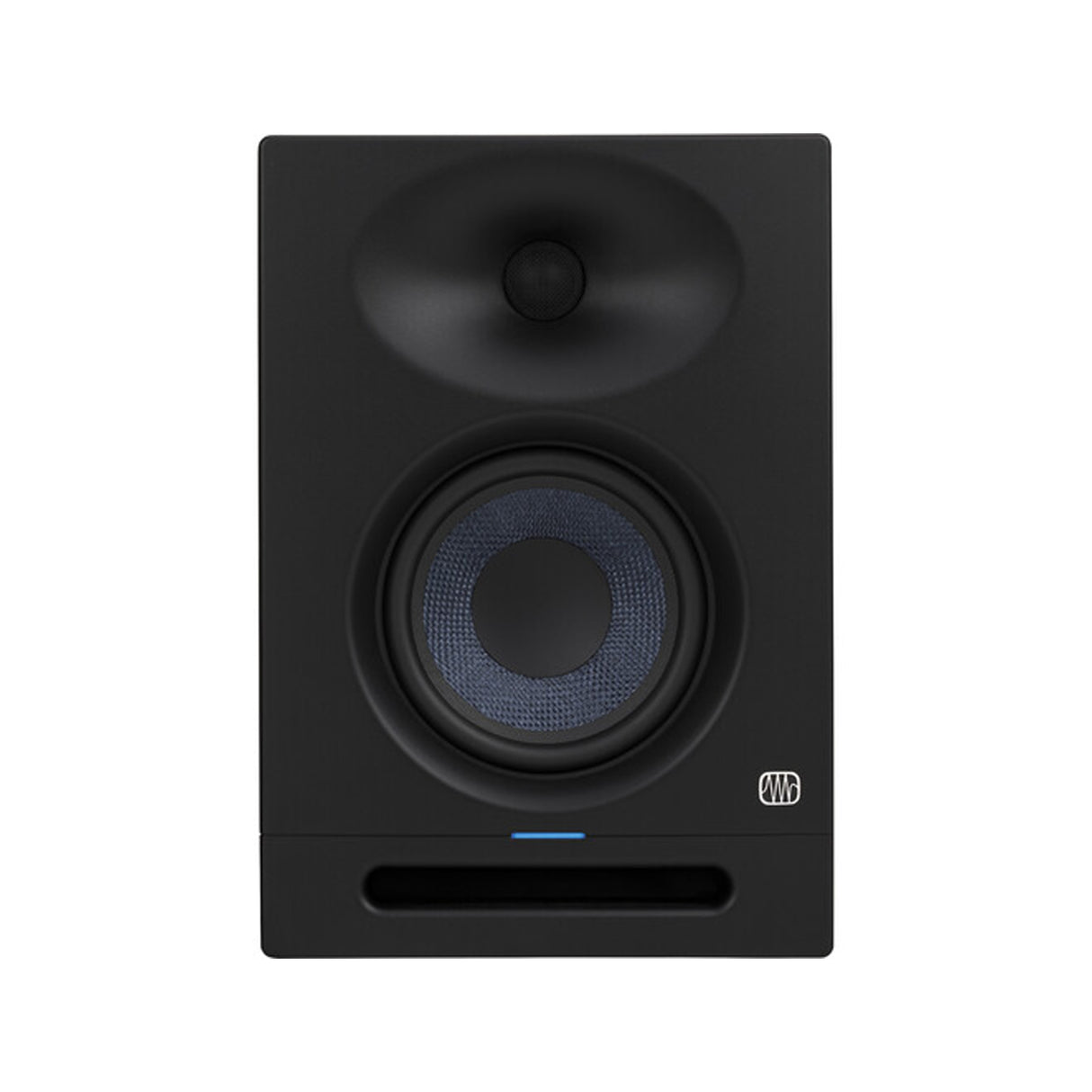

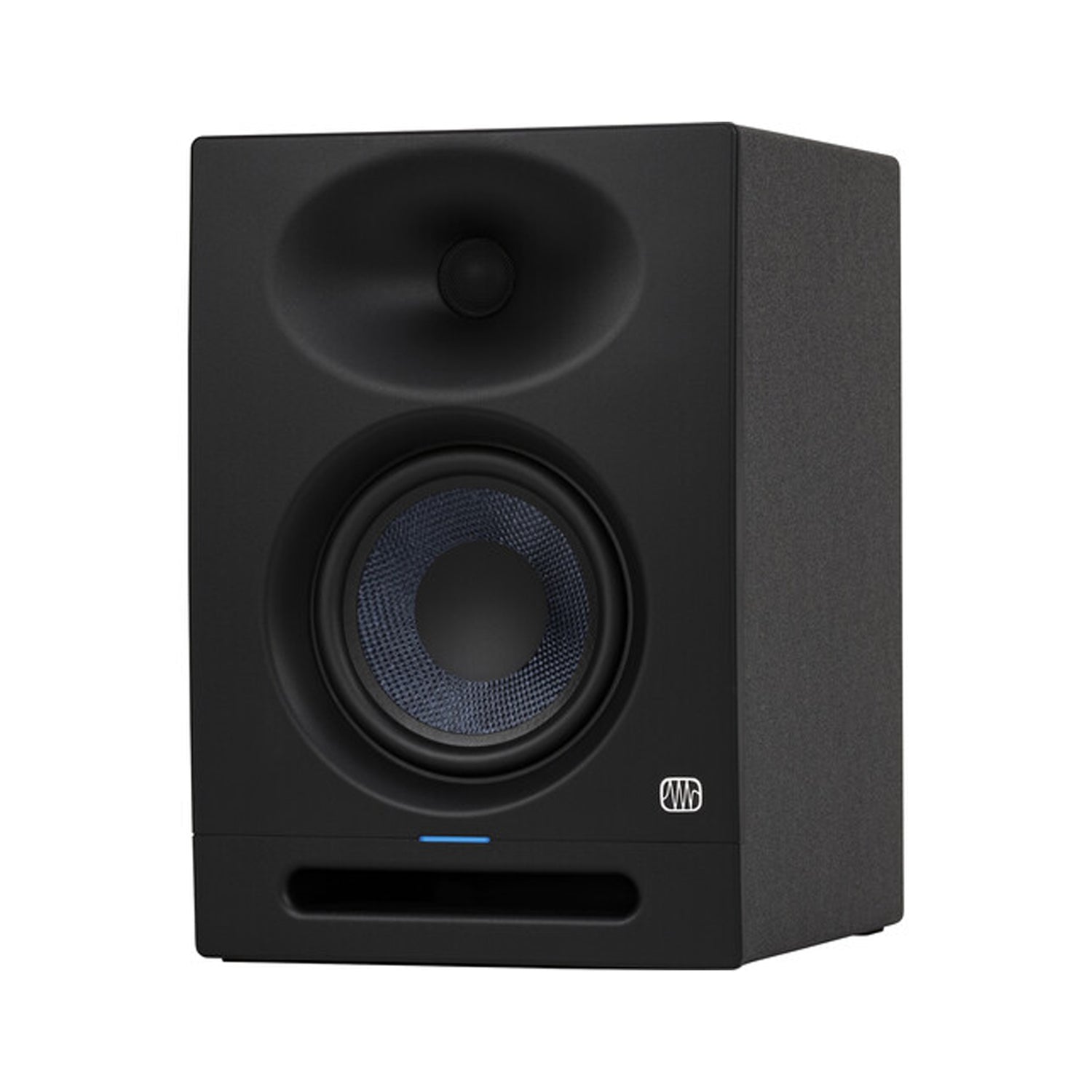

PreSonus Studio 5 Overview

Audio engineers, producers, and musicians looking for a professional studio monitor with a wide stereo image will be impressed with the single PreSonus Eris Studio 5, an active 2-way studio monitor which provides an expanded and highly accurate frequency response and a wide stereo field, thanks to the custom-designed EBM (Elliptical Boundary Modeled) waveguide, which provides a broad sweet spot. This compact studio monitor is well suited in both home studios and professional mix rooms.

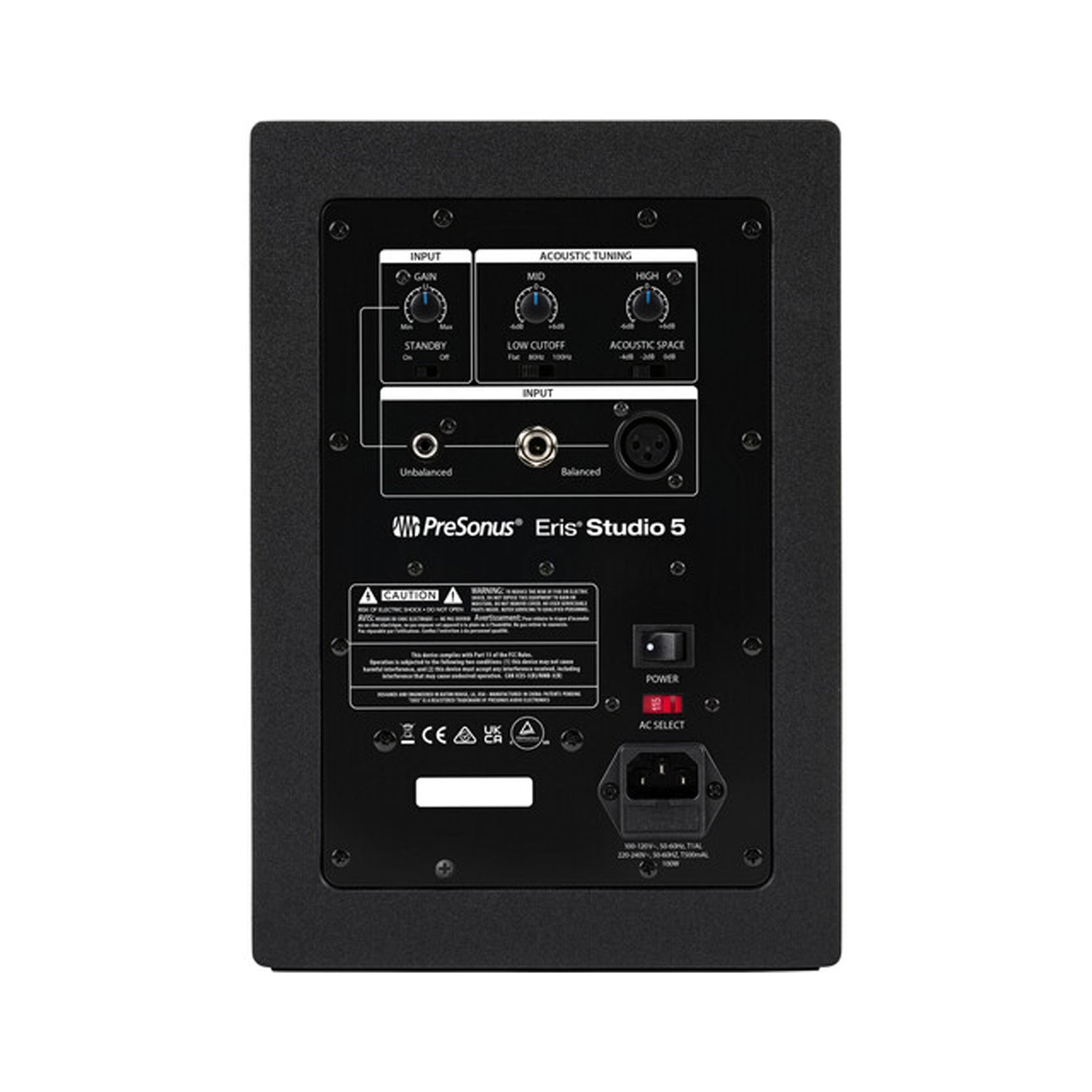

Two Class-AB amplifiers deliver 45W to the 5.25" woven composite woofer and 35W to the 1" silk dome tweeter, which offers a snappy, accurate transient response. The monitor offers a frequency response from 20 kHz down to 48 Hz for a full-range sound with plenty of volume (102 dB SPL). The rear panel provides acoustic tuning controls including a three-position Acoustic Space switch that helps compensate for the boundary bass boost that can occur when a monitor is placed in a corner or near a wall. High and Mid controls help to further mitigate room anomalies, while a low cutoff filter makes it easy to integrate a subwoofer into your monitor setup.

Key Features at a Glance

• 5.25" woven composite low-frequency driver
• 1" ultralow mass, silk-dome, high-frequency driver
• Crossover Frequency, 3.5 kHz
• 100 x 60° EBM waveguide provides a sweet spot
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
• 80W, Class AB dual amplification
• 48 Hz to 20 kHz frequency response
• 102 dB Peak SPL (at 1 m)
• Acoustic Tuning Controls
• Acoustic Space (Flat, -2 dB, -4 dB)
• High Frequency (±6 dB, center 10 kHz, continuously variable)
• Mid Frequency (±6 dB, center 1 kHz, continuously variable)
• Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
• Inputs
• XLR and 1/4-inch TRS balanced rear-panel inputs
• RCA unbalanced rear-panel inputs
• Protection
• RF interference
• Output-current limiting
• Over-temperature
• Turn-on/off transient
• Subsonic filter
• Power Saver mode (engages after 40 minutes)

 Key Specs

 Drivers

 Performance

 Signal Processing

 Power

 Physical

 Packaging Info
