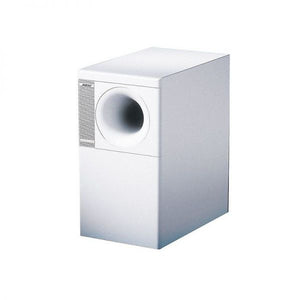

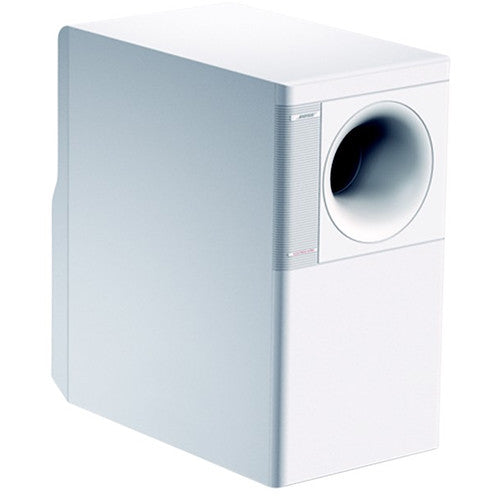

Bose FreeSpace 3 Bass-Module (White)
Bose FreeSpace 3 Bass-Module (White)
Bose FreeSpace 3 Bass-Module (White)
Bose FreeSpace 3 Bass-Module (White)

Bose FreeSpace 3 Bass-Module (White)

Rs. 101,867.00 10186700
Rs. 101,867.00 10186700
  • Free Shipping (India)
  • Brand New Unit(s)
  • Price Includes GST
  • Official Manufacturers Warranty
  • EMI Payment Option Available
  • 3/6 Months - No Cost EMI on All Orders above 30,000
  • To avail No Cost EMI, please select applicable card offer on the payment screen.
  • Tax Included.

Quantity must be 1 or more
remove add
Wishlist Compare
In stock
AV Shack
Powered Subwoofer
11079
×

3/6 Months - No Cost EMI on All Orders above 30,000

Below EMI options can be availed while making payment. To avail EMI continue to check out and chose the Credit Card option for payment.

Detail
Additional Information
Detail
Description

FEATURES

Low-frequency loudspeaker featuring one 5.25" (133mm) woofer that delivers deep, non-localized bass down to 40 Hz without audible distortion. For surface-mount applications

Acoustimass speaker technology filters out audible distortion to deliver non-localized bass

Designed to work with the FreeSpace 3 surface and flush satellite speakers, or existing systems where additional bass reinforcement is desired

Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module

Selectable 70/100V or low impedance

Applications

  • Retail stores
  • Restaurants and bars
  • Lobbies and conference rooms
Additional Information

SPECS

Technical Summary

Frequency Response (+/-3 dB)
50 Hz - 230 Hz

Frequency Range (-10 dB)
40 Hz - 315 Hz

Nominal Dispersion
Omni-directional below 200 Hz

Long-Term Power Handling
70/100 V: 200 W (800 W peak) mono
Low impedance: 50 W (200 W peak) per channel stereo or 100 W (400 W peak) mono

Sensitivity (SPL / 1 W @ 1 m)
Per channel: 76 dB SPL (Mono: 79 dB SPL)

Maximum SPL @ 1 m
Per channel: 96 dB SPL (102 dB SPL peak)
Mono: 102 dB SPL (108 dB SPL peak)

Nominal Impedance
5 Ω mono direct (transformer bypassed)

Mechanical Diagrams

Front View

Back View

Side View

Product Codes

Black
040146

White
040145
