UIW RLS II

• Higher impact punch from dual 6.5″ cast basket drivers
• Deeper bass pours through a pair of 6.5″ pressure-coupled Low Bass radiators
• Integrated wood enclosure supplies uncolored midrange audio with greater detail
• Easy installation with rotating dogleg clamps for non-resonant mounting

CLEARER HIGHS AND DEEPER LOWS WITH SUPERIOR AUDIO PERFORMANCE

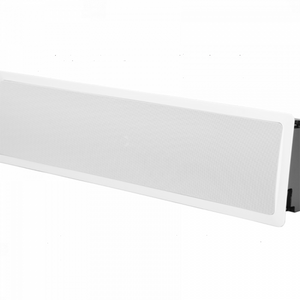

The Reference Line Source II enclosed full-range loudspeaker delivers sonically sharp audio without vibration or buzz. Non-resonant sealed medite cabinets produce tight bass and clear midrange. A pure aluminum dome tweeter, two pressure-driven Low Bass radiators and their extraordinary performance make the RLS II perfect for left, right, center or surround applications in home theaters or multichannel music systems.

Key Features
Pure Aluminum Tweeter
Smooth high frequency response rings true from a pure aluminum dome tweeter set among high definition bass/mid drivers.

Non-Resonant Sealed Medite
Enclosed in dense wood medite cabinets for vibration-free sound, the UIW RLS II reveals natural, uncolored midrange and tight, detailed bass.

Simple Stealth Installation
With a flush mount design and rotating dogleg clamps that provide secure, non-resonant mounting, the UIW RLS II is easily installed in both new and existing construction applications.

Extraordinary Sonic Performance
The sound you demand from the finest freestanding loudspeakers, now in a full-range, flush mount speaker engineered to hide within your walls.

OVERALL
Total Pieces: 1

ACCESSORIES
Included Accessories
(1) Wall Mounting Template
(1) Paint Mask
(1) Paintable Grille
(1) Self Adhering Foam Gasket
Optional Accessories
(1) Rough-in Kit RBRL – Pre-Construction Bracket – Sold Separate

SHIPPING CARTONS
Carton 1: 35″ (88.9 cm) h x 11″ (27.94 cm) w x 9″ (22.86 cm) d – 19 lbs (8.62 kg)

IN-WALL AND IN-CEILING
Qty Included: 1
Orientation: Vertical
Driver Complement: (1) 1″ (2.54 cm) d (Round) – Tweeter
(2) 6.5″ (16.51 cm) d (Round) – Mid/Woofer
(2) 6.5″ (16.51 cm) d (Round) – Bass Radiator
Depth: 3.81″ (9.68 cm)
Grille Dimensions: 29.75″ (75.57 cm) h x 8.13″ (20.65 cm) w

CROSSOVER
Peak Power Handling: 350 watts
A/V Receiver Crossover Settings: Small (40 Hz)

INPUTS
Audio Inputs

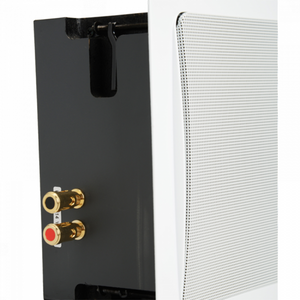

Speaker Inputs: (1) Pair of Heavy Duty, Spring Loaded – Gold Plated

AUDIO QUALITY
Total Frequency Response: 22 Hz ? 30 Hz
Nominal Impedance: 8 ohms
Max Sensitivity (1 watt @ 1 meter): 92 dB

IN-WALL MOUNT
Shape: Rectangle
Dimensions: 28.5″ (72.39 cm) h x 7″ (17.78 cm) w
