Whole home multi-zone audio in a single chassis.
NEW UPGRADED HS2 VERSION

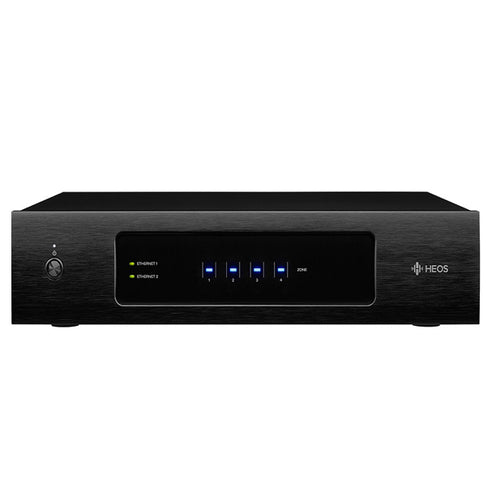

Designed by custom integration specialists for custom integration professionals, HEOS Drive is a unique 4 zone whole home audio distribution system with 8 channels of Class D amplification, all in a 2RU single chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.
Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive features low impedance drive capability (4 ohms).
Each zone features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs and 4 analog stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.
Equipped to handle virtually any combination of speaker configurations, HEOS Drive features built-in DSP high pass/low pass filters - set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.
The speaker outputs feature 4-way binding posts that are compatible with banana plug terminations, and there are 4 12V trigger outputs. The chassis features quiet fan cooling for long term stability and operational reliability.
Power Supply | 100-240 Volts AC / 50-60 Hz auto-switching |
What's In The Box | HEOS Drive HS2 / AC power cord x 4 / Ethernet Cable / Quick Start Guide / 2 rack ears |
Controls & Indicators | Power/standby / Ethernet status 1/2 / Zones 124 active status |
Weight | 15.9 lbs / 7.2 kg |
Multiple Language Support | English / French / Spanish |
Dimensions (H x W x D) | 88mm x 430mm x 402 mm (without rack ears) / 88mm x 483mm x 402 mm (with rack ears) |
Operating Temperature Range | 41dF-95dF / 5dC-35dC |
Product Finish | Black |
SPECIFICATION
