LD Systems MAUI 11 G3 - Cardioid powered Column Array 700 Watts PA System (Black)

Rs. 242,000.00
Tax included

No-Cost EMI Offer

Discover the Freedom of Zero-Cost EMI on Purchases above ₹30,000.

Warranty Information

Experience the Peace of Mind with Official Manufacturers Warranty on Every Product.

Delivery and Shipping

In general, orders are delivered within 4-6 days. However, in some cases there might be a slight delay.

Have any questions about this product? Start a chat with us now and we'll assist you. Chat Now

Free Shipping On All Products
No Cost EMI Enjoy No Cost Benefit
Secure Checkout Secure Payment

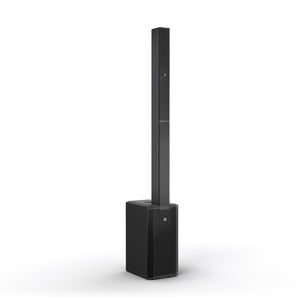

LD Systems MAUI 11 G3 - Cardioid powered Column Array 700 Watts PA System

 MAUI® 11 G3

Portable cardioid column PA system, black

  • 1460 W Peak-power and 125 dB max. SPL
  • Balanced mids thanks to 6 x 3.5" full-range speakers
  • Cardioid column for controlled low-mid and midrange sound dispersion
  • Optimised bass-reflex design improves bass response and reduces air flow noise
  • Dynx® DSP (Gen.2) for distortion-free sound even at maximum volume
  • Automatic setup detection for quick and easy operation
  • Rugged birch plywood subwoofer housing with durable polyurea-coating
  • Powerful bass reproduction with 2 x 8" subwoofer
  • Precise and silky highs with 2 x 1" high-frequency drivers
  • BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
  • Can be combined with an additional MAUI® 11 G3 subwoofer for increased low end or for cardioid subwoofer setups
  • AAC coding for HD Bluetooth® 5.0 streaming
  • Fast and simple assembly without stands or cables
  • Lightweight, powder-coated aluminium column housing

 Lightweight, powder-coated aluminium column housing

The column and the mid speakers of MAUI G3 are larger than in the previous versions, offering an unprecedented full range experience.

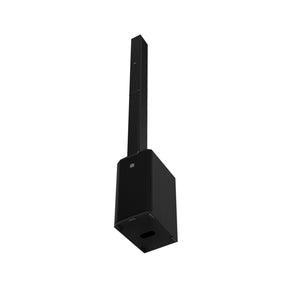

The subwoofers of the MAUI G3 series have been completely re-engineered to generate massive bass from a compact design.


Less is more – The MAUI G3 line-in versions were designed as the ultimate headache-free PA systems. Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.
The user panel features a stereo line input, a THRU line output to feed an additional sound system and a dedicated sub output allowing you to connect an additional “follower” subwoofer. You’ll also find a few controls like MAIN volume, SUB volume as well as the cardioid preset switch. And thanks to the built-in Bluetooth 5.0 input with codec you can stream high resolution audio directly to your PA!


Thanks to their line array arrangement and integrated waveguides on top of the low mid speakers, the so-called phase plugs, MAUI G3 offers a super wide 120° of constant horizontal dispersion.


The sophisticated curved waveguide offers a narrow and precise vertical dispersion of 30°. This ensures that the HI frequencies will reach the front row of your audience just as effectively as the very back of the venue.

 DOWN TO 39 Hz

Equipped with double 8" woofers and four bass reflex ports, the MAUI 11 G3 subwoofer delivers a clear, tight and punchy low end down to 39 Hz.


Our engineers re-designed the subwoofer of MAUI 11 G3 entirely and it is now louder and goes deeper.


The new ellipsoidal bass-reflex ports improve the bass response and reduce air flow noise significantly.


The subwoofer chassis is crafted according to our strict specifications and delivers a very precise and fast response in the low end.

 +6 dB LOW END

Simply place the "FOLLOWER" subwoofer next to your “MAIN” system facing front to enhance the bass response of +6 dB towards the audience.


You want to build a cardioid subwoofer setup? No problem. Simply rotate the subwoofer 180°, and activate the cardioid setup on the back of the sub.


With the automatic column detection, the subwoofer automatically enables the "FOLLOWER" mode when the column is removed and adapts the DSP settings accordingly.

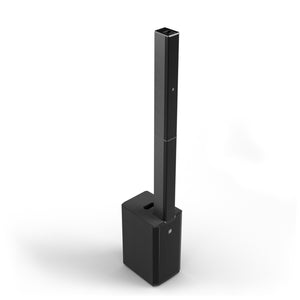

The 2-piece passive column of MAUI G3 has been reworked entirely and refined in many aspects. A unique feature of the new column is its passive cardioid design offering controlled low-mid and midrange sound dispersion.


Thanks to its exclusive design the column offers real cardioid dispersion characteristics and provides an 18 dB attenuation to the rear between 100 Hz and 1 kHz.


The cardioid behaviour of the column is made possible by a clever use of acoustic dampening foam behind the tweeters and mid woofers within the column itself and by precise cutouts within the column aluminium housing.


With an additional subwoofer you can create a cardioid setup. Simply rotate the follower subwoofer 180°, and activate the cardioid setup on the back of the sub.


With -15 dB bass attenuation to the rear you reduce the risks of feedback, hearing fatigue and phase cancellations significantly.


The cardioid setup also has the nice side effect to enhance the low-end response of 2 to 3 dB towards the audience. More bass right where you need it. And not anyhwere else.


Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!

The MAUI 11 G3 delivers a huge, powerful and precise sound featuring 730 W RMS power (1,460 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

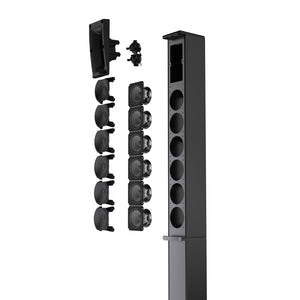

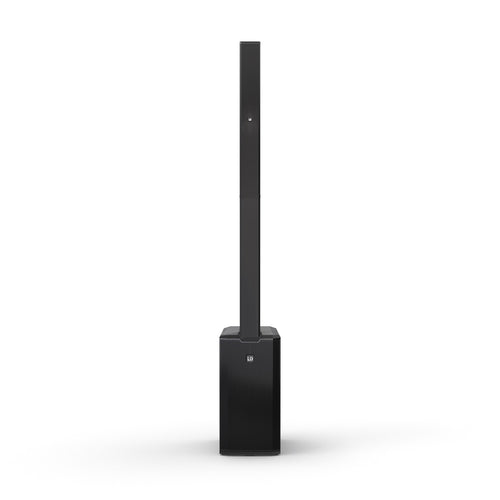

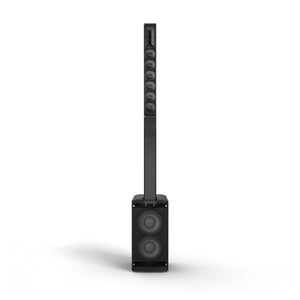

With its sleek and elegant design, the MAUI 11 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field.

The columns of the MAUI 11 G3 are designed as cardioid units. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8'' woofers and four bass reflex ports, the MAUI 11 G3 subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

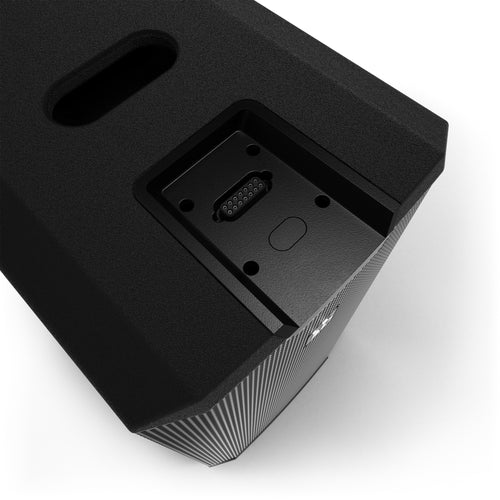

The MAUI 11 G3 is a real sound machine, yet also convinces with its smart features in the day-to-day life of DJs, musicians, and technicians. Thanks to Bluetooth 5.0 and AAC coding, the column PA becomes even more versatile. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...

Additional Information



Product type
PA Complete Systems
Max. SPL (Peak)
125 dB
Frequency response
39 Hz - 20000 Hz
Dispersion (H x V)
120° x 30 °
Overall height
2052 mm
30,7 kg
Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application


Woofer dimensions
2 x 8 "
Woofer dimensions (mm)
2 x 203 mm
Woofer magnet
Woofer brand
Woofer voice coil
2 "
Woofer voice coil (mm)
50.8 mm
Cabinet construction
Bass Reflex
Housing material
15 mm Birch Plywood
Cabinet surface
Dimensions Subwoofer (W x H x D)
305 x 607 x 403 mm
Subwoofer weight
20.5 kg

 Mid/Hi System

Midrange dimensions
6 x 3.5 "
Midrange dimensions (mm)
6 x 89 mm
Midrange magnet
Midrange brand
Midrange voice coil
0.75 "
Midrange voice coil
19 mm
Tweeter dimensions
2 x 1 "
Tweeter dimensions (mm)
2 x 25.4 mm
Tweeter magnet
Tweeter brand
Tweeter voice coil
1 "
Tweeter voice coil (mm)
25.4 mm
Wave Guide
CD Waveguide
Loudspeaker inputs
Speaker input connections
Custom-made multipin
Cabinet construction mid/high
Passive Cardioid
Mid/Hi system cabinet material
Mid/Hi system cabinet surface
Mid/Hi system width
103 mm
Mid/Hi system height
1460 mm
Mid/Hi system depth
135 mm
Mid/Hi system weight
10.2 kg

 Amplifier module (integrated in subwoofer)

Class D
System output (RMS)
730 W
System output (Peak)
1460 W
Protection circuits
DC protection, Multiband limiter, short circuit, thermal protection
Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
Mains connector
IEC power cable (included)
Operating voltage
100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
T 3.15AL / 250 V
Power consumption
300 W
Ambient temperature (operating)
0 - 40 °C
Relative Humidity
< 80% (non-condensing)
Line Inputs
Line Output Connectors
Combo XLR / TRS
Line Outputs
1 x Sub OUT, 2 x THRU
Line Output Connectors
XLR male
Number of speaker outputs
Loudspeaker Output Connectors
Custom-made multipin
Bluetooth Standard
Bluetooth Audio Decoder

 DSP characteristics

Bit depth AD/DA converter
24 bit
Sampling frequency
48 kHz
