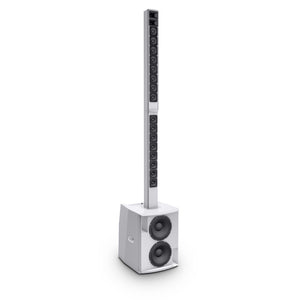

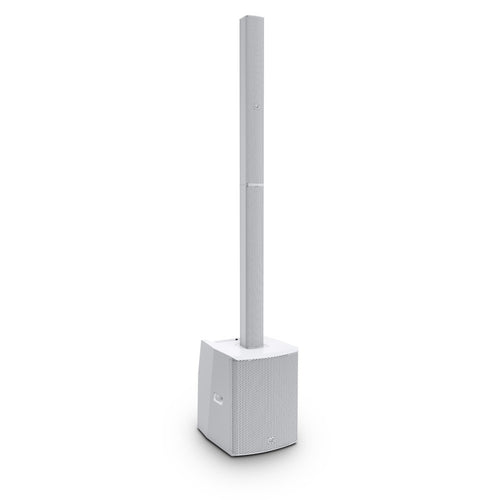

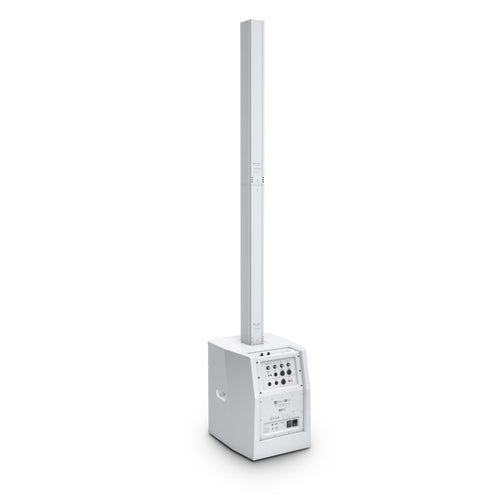

LD Systems MAUI 28 G2W - Compact Bluetooth Column PA System with Mixer

MAUI 28 G2 W

Compact column PA system active with built-in mixer and Bluetooth white

All-in-one column speaker for PA and monitor applications
Powerful bass reproduction with 2 x 8" woofers
Precise and silky highs with 2 x 1" high-frequency drivers
Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming
Secure plug-and-play connection thanks to the wireless multi-pin mechanism
Easy operation with presets for mono or stereo configuration
2,000 watts peak Class-D system power offers high performance with a low weight

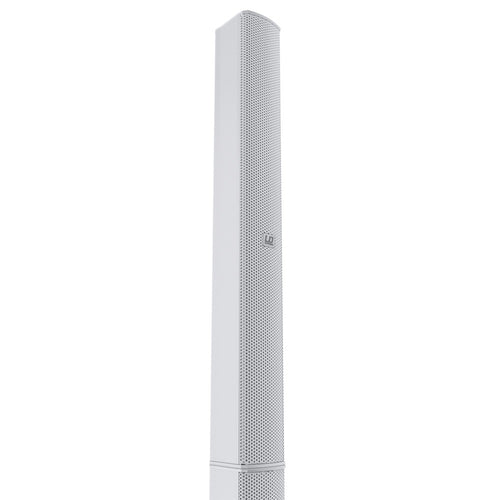

Balanced mids thanks to the 16 x 3" full-range speakers
Increased range and wider coverage through the array arrangement
Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology

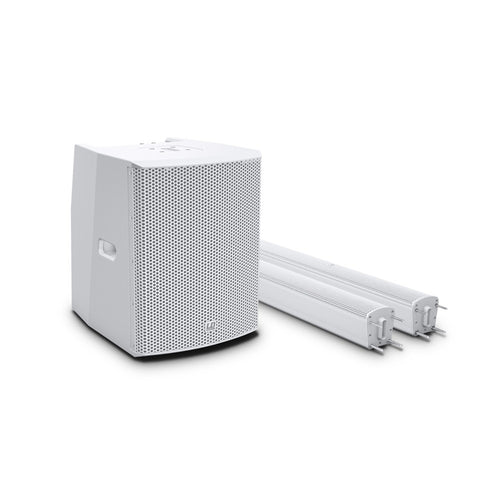

Two-piece column for compact transport
A wide range of application options through dismountable columns
Extensive and smart accessories for installation and transport

Description

A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.

The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.

The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.

Additional Information

Specifications

General

Weight	30,9 kg
Product type	PA Complete Systems
Type	active
Color	White
Max. SPL (Peak)	126 dB
Frequency response	45 - 20000
Dispersion (H x V)	120° x 20 °
Overall height	2059 mm

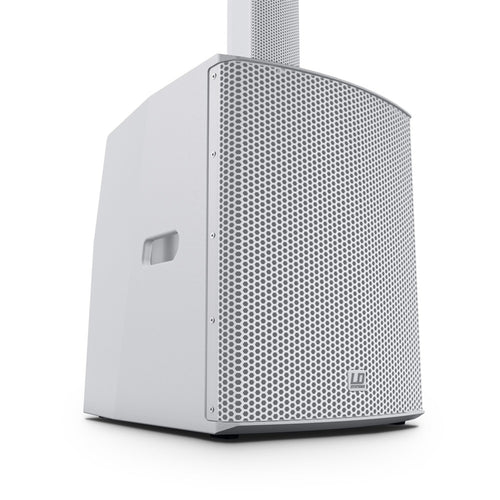

Woofer characteristics

Low/mid Woofer dimensions	2 x 8 "
Woofer dimensions (mm)	2 x 203 mm
Woofer magnet	Ferrite
Woofer brand	Custom-made
Woofer voice coil	2 "
Woofer voice coil (mm)	50.8 mm
Cabinet construction	Bass Reflex
Cabinet material	15 mm Plywood
Cabinet surface	texture paint
Subwoofer width	370 mm
Subwoofer height	484 mm
Subwoofer depth	480 mm
Subwoofer weight	19.7 kg

Mid/Hi System

Midrange dimensions	16 x 3 "
Midrange dimensions (mm)	16 x 76.2 mm
Midrange magnet	Ferrite
Midrange brand	Custom-made
Midrange voice coil	1 "
Midrange voice coil	25.4 mm
Horn	Waveguide
Tweeter dimensions	2 x 1 "
Tweeter dimensions (mm)	25.4 mm
Tweeter magnet	Neodymium
Tweeter brand	Custom-made
Tweeter voice coil	1 "
Tweeter voice coil (mm)	25.4 mm
Loudspeaker inputs	1
Speaker input connections	Custom-made multipin
Mid/Hi system cabinet material	Aluminium
Mid/Hi system cabinet surface	HD coating
Mid/Hi system width	96 mm
Mid/Hi system height	780 / 795 mm
Mid/Hi system depth	104 mm
Mid/Hi system weight	5.6 / 5.6 kg

Amplifier module (integrated in subwoofer)

Amplifier	Class D
Amplifier output system (RMS)	1000 W
Amplifier output system (peak)	2000 W
Protection circuits	DC protection, Multiband limiter, short circuit, thermal overload
Cooling	Convection
Operating Temperature	0 - 40 °C
Humidity Range	10% to 80%, (non-condensing)

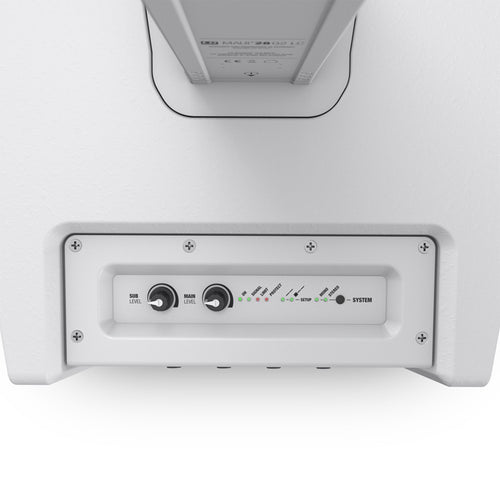

Controls	Bluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
Indicators	Limit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
Power connector	IEC power cable (included)
Operating voltage	100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max.	0/11/600 W

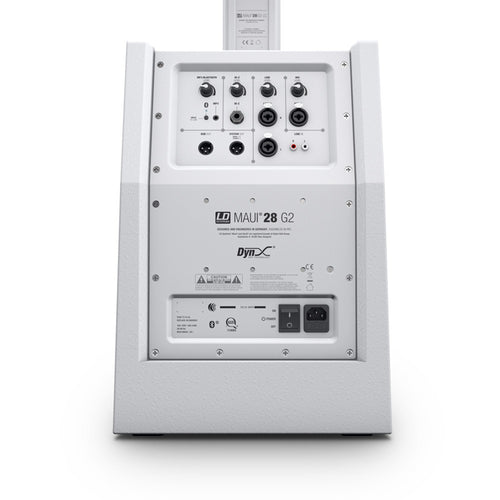

Line inputs	2 x stereo
Line input connectors	RCA, XLR/6.3 mm jack
Line outputs	2 (1x System Out, 1x Sub Out)
Line output connectors	XLR
Mic inputs	1
Mic inputs	XLR/6.3 mm jack
MP3 inputs	1
MP3 input connectors	3.5 mm jack
Hi-Z inputs	1
Hi-Z input connectors	6.3 mm jack
Loudspeaker outputs	1
Speaker output connections	Custom-made multipin
