SAT 82 G2
8" Installation Monitor passive black

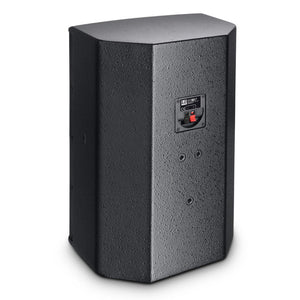

The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.
The bass-reflex design is loaded with an 8" custom woofer and a 1“ silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz - 20 kHz with a dispersion angle of 60° and attain a maximum sound- level pressure of 114 dB. The LD SAT82G2 is rated for a RMS power load of 120 W.

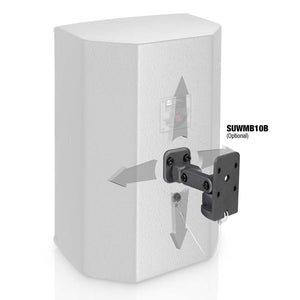

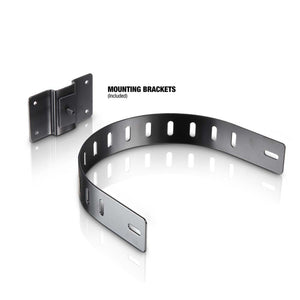

The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.
General
Product type
|
Installation Loudspeakers |
---|---|
Type
|
Wall-mounted Loudspeaker |
Low/mid Woofer dimensions
|
8 " |
Woofer dimensions (mm)
|
203 mm |
Woofer magnet
|
Ferrite |
Woofer brand
|
Custom-made |
HF driver dimensions
|
1 " |
HF driver dimention (mm)
|
25 mm |
HF driver magnet
|
Ferrite |
HF driver brand
|
Custom-made |
Dispersion (H x V)
|
60 x 60 ° |
Load rating (RMS)
|
120 W |
Frequency response
|
55 - 20000 |
SPL (1W/1m)
|
93 dB |
Max. SPL
|
114 dB |
Impedance
|
8 Ohm(s) |
Protection circuits
|
HF Driver |
Loudspeaker inputs
|
1 |
Speaker input connections
|
Clamp connector |
Speakers per amplifier channel (DSP44/45K)
|
4 |
Cabinet material
|
15 mm MDF |
Cabinet surface
|
texture paint |
Cabinet colour
|
Black |
Cabinet construction
|
Bass Reflex |
Width
|
274 mm |
Height
|
410 mm |
Depth
|
243 mm |
Weight
|
7 kg |
