Powerful 300W Bass Performance
The REL Acoustics PL-1 Planar is designed to enhance your home audio system with deeper bass and added low-frequency presence. With a 300W power rating, it provides a dedicated bass solution for music listening and home entertainment.
Dual 6.5-Inch Coupled Passive Radiators
Featuring dual 6.5-inch coupled passive radiators, the PL-1 Planar is engineered to support low-frequency output. This design helps add depth and impact to compatible music, movies, and other audio content.
Enhanced Low-Frequency Detail
Enjoy a fuller listening experience with dedicated bass reproduction. From rhythmic bass lines and percussion to cinematic sound effects, the subwoofer helps bring greater presence to your favourite entertainment.
Designed for Home Audio Systems
The PL-1 Planar is designed to complement compatible speakers in a home audio or home theatre setup. Integrating a dedicated subwoofer can help extend low-frequency performance and create a more balanced overall sound.
Immersive Home Theatre Experience
Add impact to compatible movie soundtracks, dramatic scenes, and action sequences. When properly integrated with suitable audio equipment, the subwoofer can make home entertainment more engaging.
Enhanced Music Playback
The dedicated bass output can complement music by adding presence to bass lines, drums, and other low-frequency elements. It is a practical addition for listeners looking to enhance their existing speaker system.
Sleek Black Finish
The black finish gives the REL Acoustics PL-1 Planar a sophisticated, understated appearance. It blends naturally with modern interiors and coordinates easily with a variety of home audio components.
Flexible Audio System Integration
Designed for use in a compatible audio setup, the PL-1 Planar can be incorporated according to your room layout and listening preferences. Refer to the manufacturer's specifications for connection requirements and placement recommendations.
Upgrade Your Home Audio Experience
Combining a 300W power rating, dual 6.5-inch coupled passive radiators, and a refined black finish, the REL Acoustics PL-1 Planar is designed for listeners seeking deeper bass for music and home entertainment.
Specification
Details
Brand
REL Acoustics
Model
Planar PL-1
Product Type
Active Planar Subwoofer
Colour
Gloss Piano Black

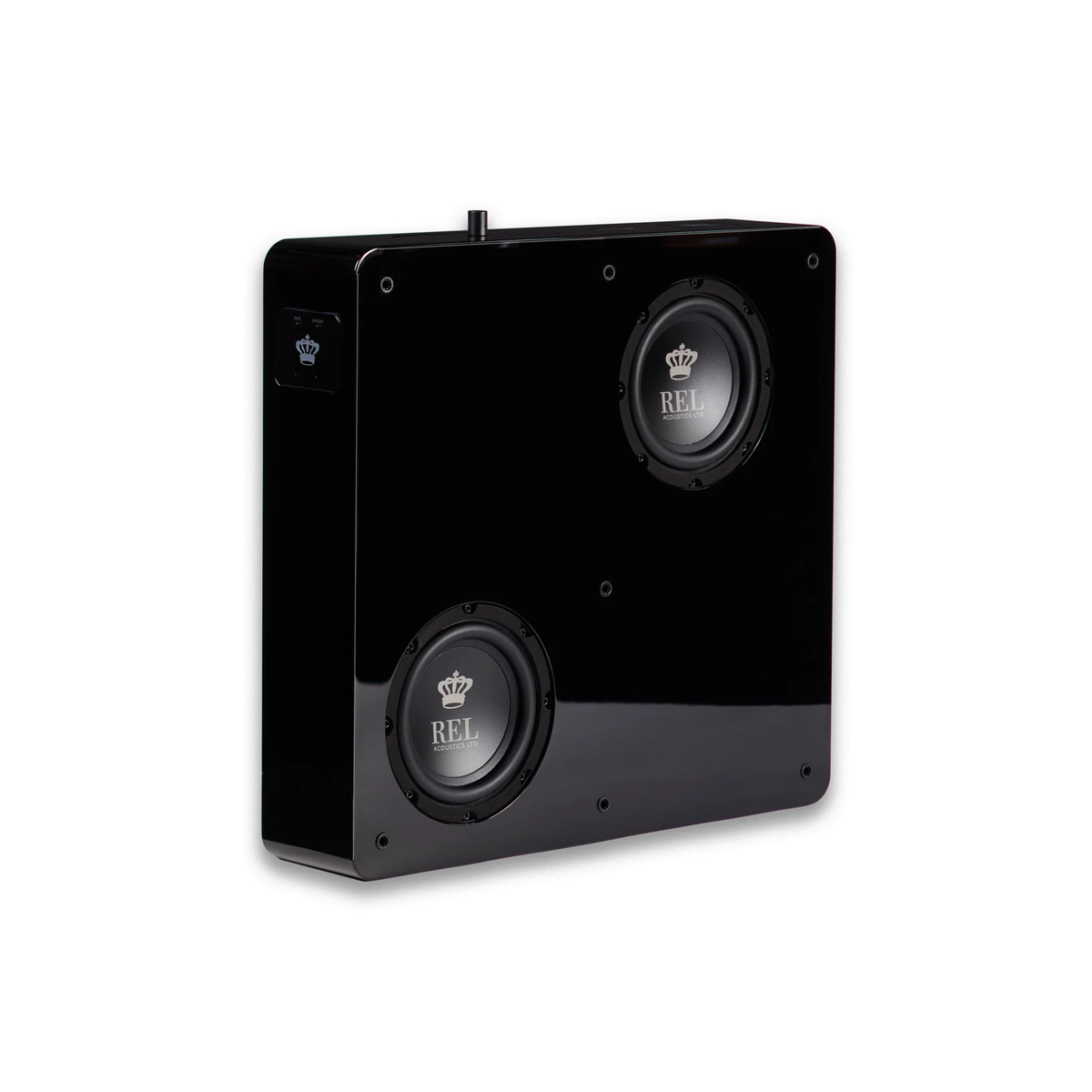

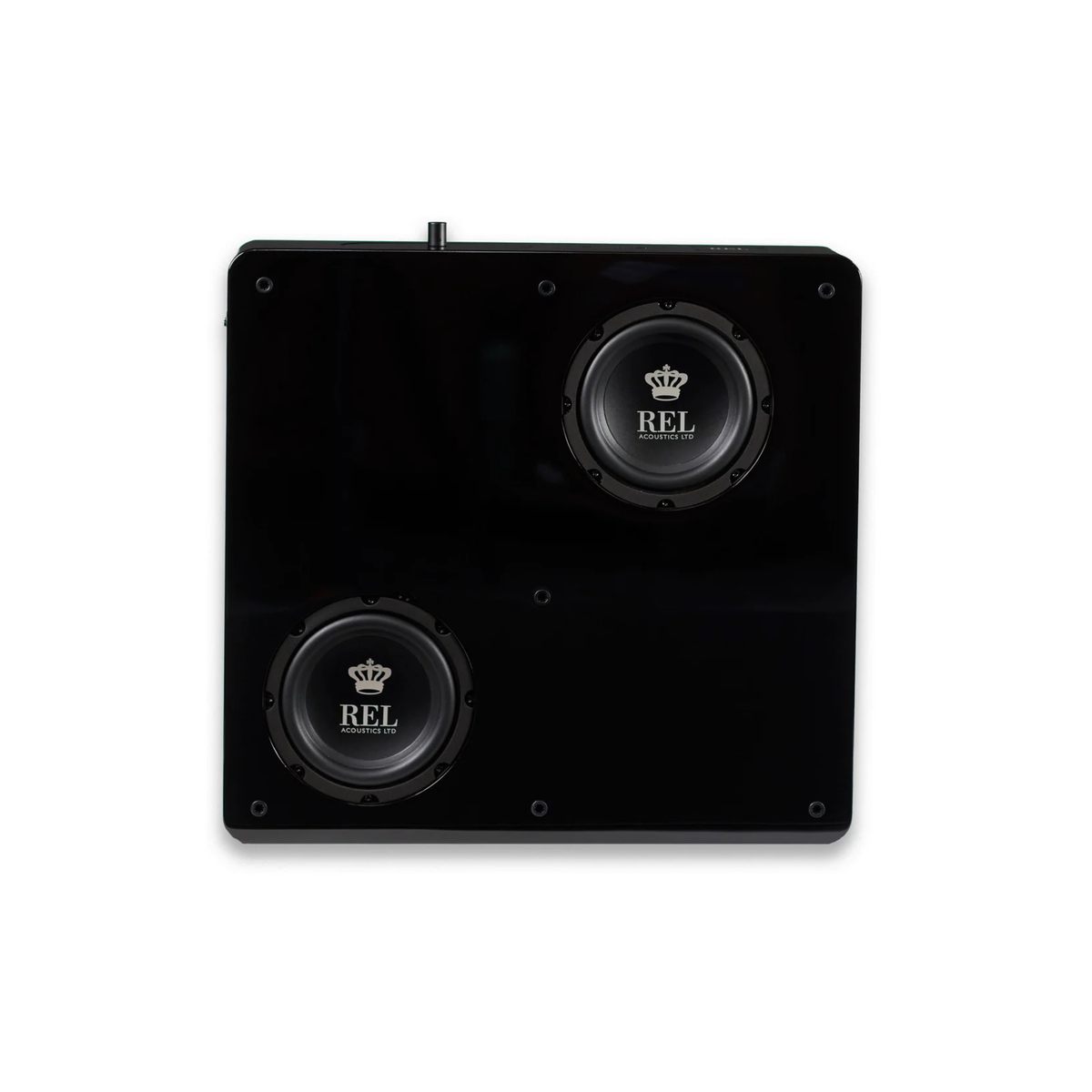

Active Driver Configuration
Two front-firing active woofers
Active Driver Size
Dual 6.5-inch (165 mm) long-throw FibreAlloy cone drivers with steel chassis

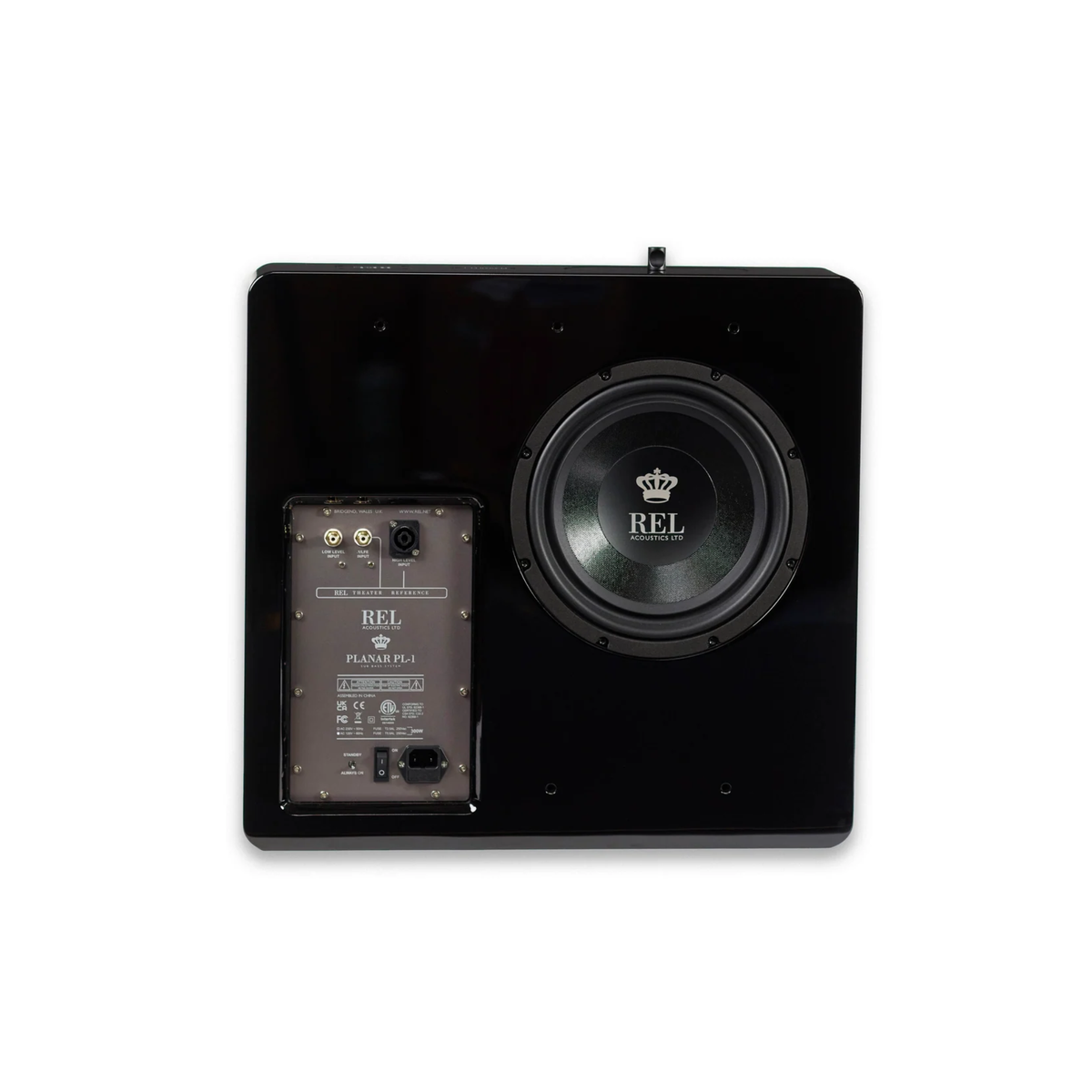

Passive Radiator
Single rear-firing 10-inch (250 mm) FibreAlloy cone with steel chassis
Amplifier Power
300 watts RMS
Amplifier Type
Pure Class D
Low-Frequency Extension
-6 dB at 31 Hz in-room
Input Connectors
High-Level Neutrik Speakon, Low-Level RCA and LFE RCA
Wireless Connectivity
Built-in Airship Direct wireless system
Placement Options

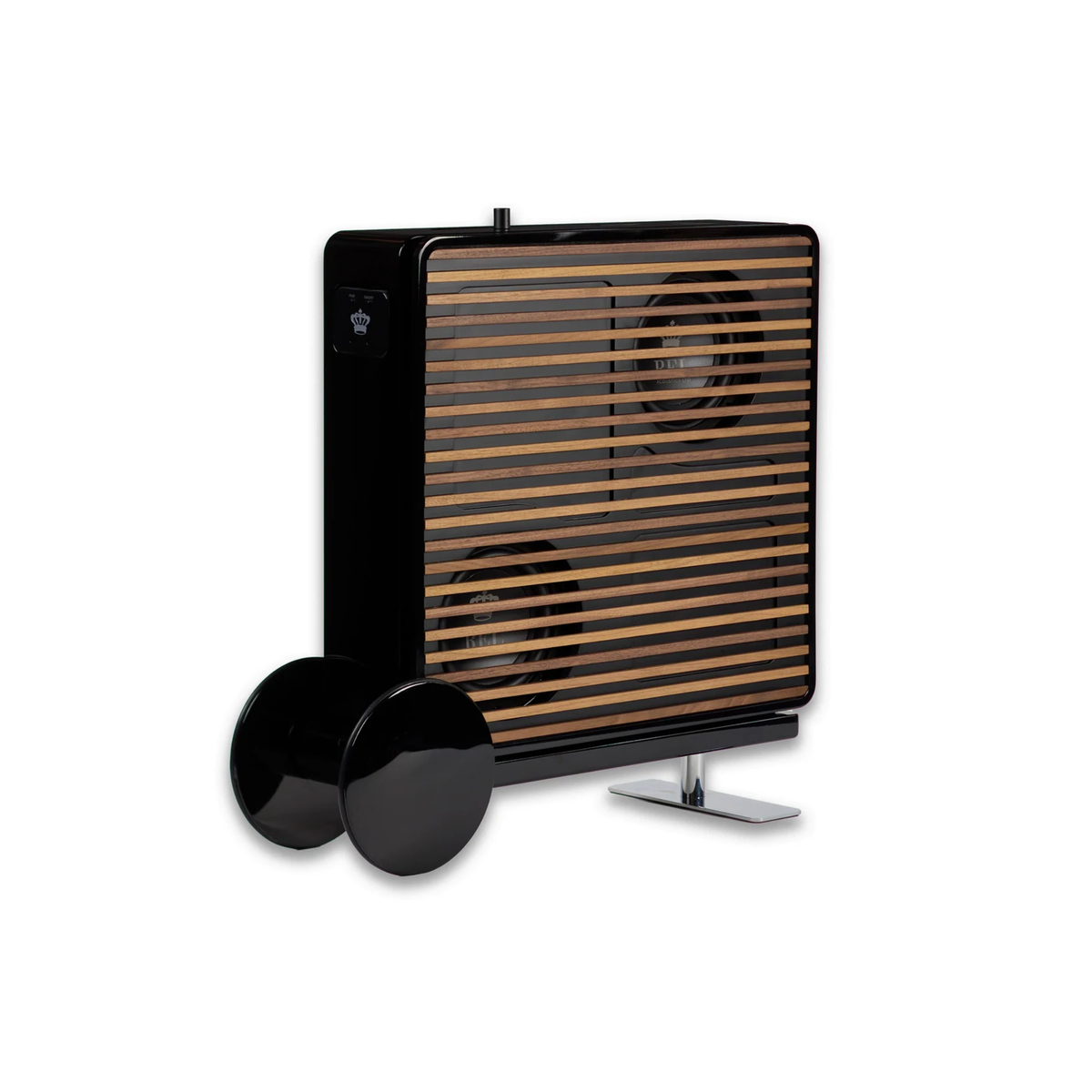

Near-wall placement or direct wall mounting; optional Planar Cart for flexible positioning
Cabinet Design
Ultra-thin cabinet designed for modern living spaces and wall integration
Vibration Control
VIMAR (Vibration Isolation Material and Resonance Control) system
Phase Switch
0° / 180°
Protection System
Fully electronic Set-Safe protection, DC fault protection and output short-circuit protection
Mains Input Voltage
100–240 V, selectable
Fuse Rating
2.5 A for 230 V operation; 5 A for 120 V operation
Dimensions (W × H × D)
522 × 492 × 144 mm
Additional Wall-Mount Depth
39 mm with wall-mount bracket
Net Weight
18.9 kg
Supplied Accessories
Right-angle mains lead, 1.5 m Neutrik Speakon cable, high-level cable, two RCA cables, power adapter, cloth grille, wireless receiver, wall-mounting template, brackets, mounting hardware and user manual
