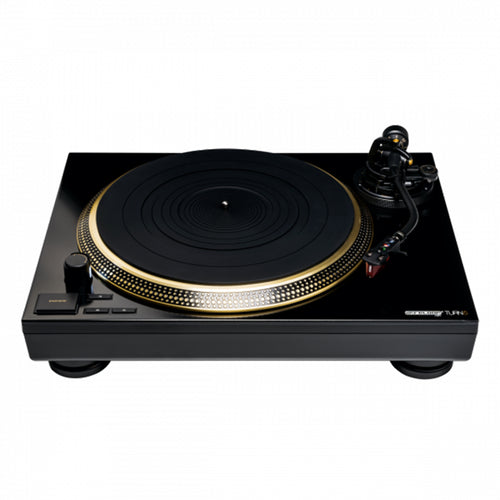

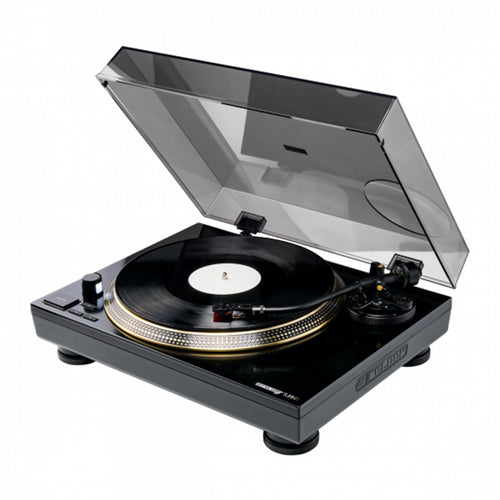

Reloop Turn 5 Turntable

TURN5

Outstanding performance, precision design and fidelity sound.

Direct Drive HiFi Turntable System

With TURN5 Reloop HiFi is launching a quartz-controlled, direct-drive turntable that meets the highest sound requirements. Using our expertise we have developed a new HiFi turntable, which with its technical sophistication is the best in its class.

Powerful DC motor & low-resonance die-cast platter

The brushless, direct-drive DC motor ensures a powerful drive at a very consistent rotation and the TURN5 has been produced using die-cast precision manufacturing techniques. A dampening rubber base on the turntable system eliminates any unwanted resonance and the accompanying 5 mm rubber coating also protects against vibrations so that nothing stands in the way of the exceptional sound reproduction.

High-quality control elements & connections

The three motor speeds can be selected with convenient controls on the top to 33 1/3, 45 or 78 rpm. This means the TURN5 can also play back old shellac records with a corresponding mono-system (not included). Next to this is the large start/stop knob. The universal locking mechanism (SME) on the tonearm allows for a quick and easy headshell exchange. Also, with the supplied counterweight a whole range of cartridges can be used as this also supports heavier pick-ups. On the rear panel of the TURN5 is a gold-plated phono output pair (RCA) with a separate earth connection to prevent any potential interference. The terminal for all cable connections has been recessed to protect them as much as possible. For a simple exchange, the power cable and the RCA cable can be removed.

Static balanced S-tone arm & Hi-tech Ortofon cartridge system

The TURN5 uses a statically balanced S-shape tone arm. This is supplied, along with the hydraulic lift and an anti-skating setting, with a convenient tone arm height adjustment with locking VTA. This guarantees optimum performance of the cartridge and an accurate reproduction of the recording medium. The supplied Ortofon 2M Red cartridge is already pre-mounted on a headshell and stands out thanks to its elliptical cut with phenomenal sound quality.

Elegant design in a particularly heavy-duty construction

The housing is built on a heavy-duty metal construction with shock-absorbing feet in order to isolate unwanted vibrations as much as possible and reduce ambient noise. The combination of several materials provides additional stiffness to the housing. With its deep black piano finish, visually the TURN5 is elegant and timeless. The gold-plated turntable hovers harmoniously above the cover plate and focuses the view on the important thing – the record.

RELOOP TURN 5

DIRECT DRIVE HIFI TURNTABLE SYSTEM

  • Powerful direct-drive DC motor for a stable rotation
  • Heavy, low-resonance die-cast platter
  • VTA-adjustable Tonearm with a Ortofon 2M red cartridge

Direct Drive HiFi Turntable System

With TURN 5 Reloop HiFi is launching a quartz-controlled, direct-drive turntable that meets the highest sound requirements. Using our expertise we have developed a new HiFi turntable, which with its technical sophistication is the best in its class.

Powerful DC motor & low-resonance die-cast platter

The brushless, direct-drive DC motor ensures a powerful drive at a very consistent rotation and the TURN 5 has been produced using die-cast precision manufacturing techniques. A dampening rubber base on the turntable system eliminates any unwanted resonance and the accompanying 5 mm rubber coating also protects against vibrations so that nothing stands in the way of the exceptional sound reproduction.

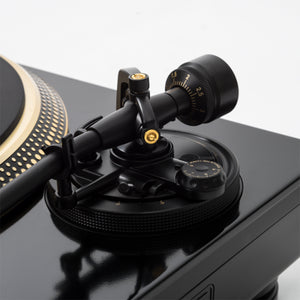

Static balanced S-tone arm & Hi-tech Ortofon cartridge system

The TURN 5 uses a statically balanced S-shape tone arm. This is supplied, along with the hydraulic lift and an anti-skating setting, with a convenient tone arm height adjustment with locking VTA. This guarantees optimum performance of the cartridge and an accurate reproduction of the recording medium.

The supplied Ortofon 2M Red cartridge is already pre-mounted on a headshell and stands out thanks to its elliptical cut with phenomenal sound quality.

High-quality control elements & connections

The three motor speeds can be selected with convenient controls on the top to 33 1/3, 45 or 78 rpm. This means the TURN 5 can also play back old shellac records with a corresponding mono-system (not included). Next to this is the large start/stop knob. The universal locking mechanism (SME) on the tonearm allows for a quick and easy headshell exchange. Also, with the supplied counterweight a whole range of cartridges can be used as this also supports heavier pick-ups.

On the rear panel of the TURN 5 is a gold-plated phono output pair (RCA) with a separate earth connection to prevent any potential interference. The terminal for all cable connections has been recessed to protect them as much as possible. For a simple exchange, the power cable and the RCA cable can be removed.

Elegant design in a particularly heavy-duty construction

The housing is built on a heavy-duty metal construction with shock-absorbing feet in order to isolate unwanted vibrations as much as possible and reduce ambient noise. The combination of several materials provides additional stiffness to the housing. With its deep black piano finish, visually the TURN 5 is elegant and timeless. The gold-plated turntable hovers harmoniously above the cover plate and focuses the view on the important thing – the record.

FEATURES

  • Quartz-Controlled HiFi turntable with high torque
  • Brushless Direct Drive DC Motor
  • Precision machined Die-Cast Aluminium Turntable Platter for a perfectly balanced rotation
  • Deadening Rubber covering rear platter surface & special 5mm rubber mat for optimized resonance control and damping
  • USB recording function: recording and digitalisation of vinyl via simple USB connection for PC/Mac
  • Static-balanced S shaped tonearm with VTA adjustment
  • Adjustable anti-skating dial for improved cartridge tracking
  • Pre-installed Ortofon 2M Red cartridge
  • Integrated motor control selector for conveniently selecting three different speeds (33, 45 and 78 RPM)
  • Universal headshell connector (SME) provides added flexibility
  • High Quality Phono outputs (with separate grounding connection)
  • Gold-plated, corrosion resistant audio outputs (power and RCA cables detachable)
  • Sunk-in terminal cavity for protected connection
  • Especially heavy metal construction, rigid cabinet design and Shock-resistant feet for effective decoupling
  • Supplied counterweight supports a wide variety of cartridges
  • Elegant design with deep black Piano Finish and a fully gold anodised Platter
  • Included Accessories: Turntable Platter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCA Cable with earth lead, AC power supply cord, Rubber Mat, Instruction Manual, Ortofon 2M Red cartridge & headshell

Specifications

Turntable Section

Type
Direct Drive Manual Turntable System
Drive
Quartz driven upper-torque direct drive
Motor
16 pole, 3 phase, brushless DC motor
Turntable Speeds
3 speeds, fully manual (33 1/3, 45, 78 rpm)
Starting Torque
4500 g/cm
Start-up time / rpm change
less than 0.2 sec.
Wow and flutter
0.01% WRMS
S/N Ratio
More than 55 dB (DIN-B)
Brake system
electronic brake
Record weight
recommended 800g

Turntable Platter

Material
aluminium die-cast
Diameter
332 mm
Weight
About 1.8 kg (including rubber mat)

Tonearm Section

Type
Universal Static Balanced S-Shaped
Effective Length
230 mm
Overhang
15 mm
Tracking Error Angle
Less than 3 degree
Offset Angle
22°
Stylus Pressure
0 - 4 g
Adjustable Tonearm Base (VTA)
0-6 mm
Applicable Cartridge Weight
3.5~8.5 g (including headshell is 13~18 g)
Anti-Skating Range
0 – 3 g
Effective tonearm mass
20 g (incl. headshell)
1x PHONO Out (gold-plated)
1x GND Earth Terminal

General

Power supply
AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
Power Consumption
9 W
Dimensions
458 (W) x 368.3 (D) x 162.4 (H) mm
Weight: approx
12.8 kg
