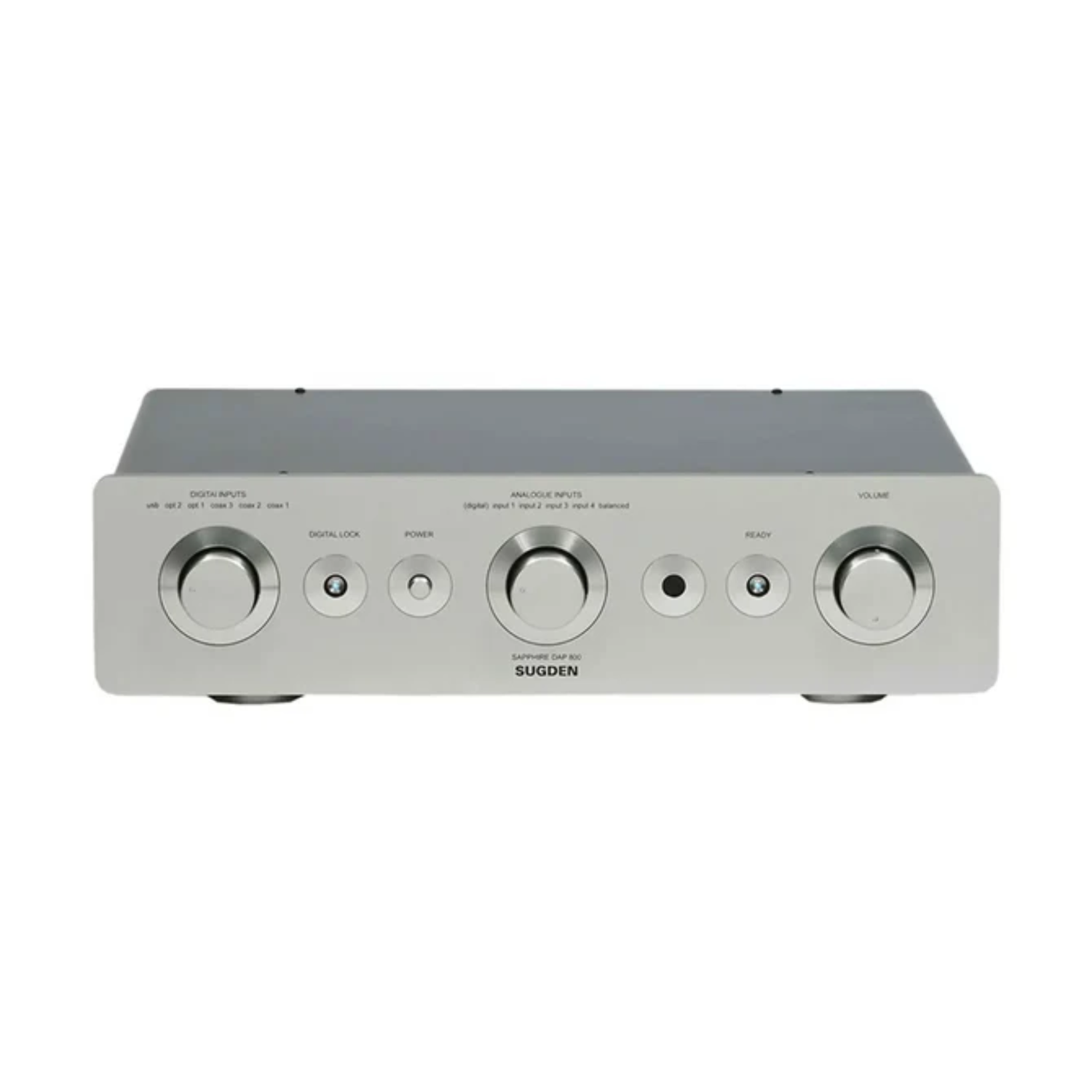

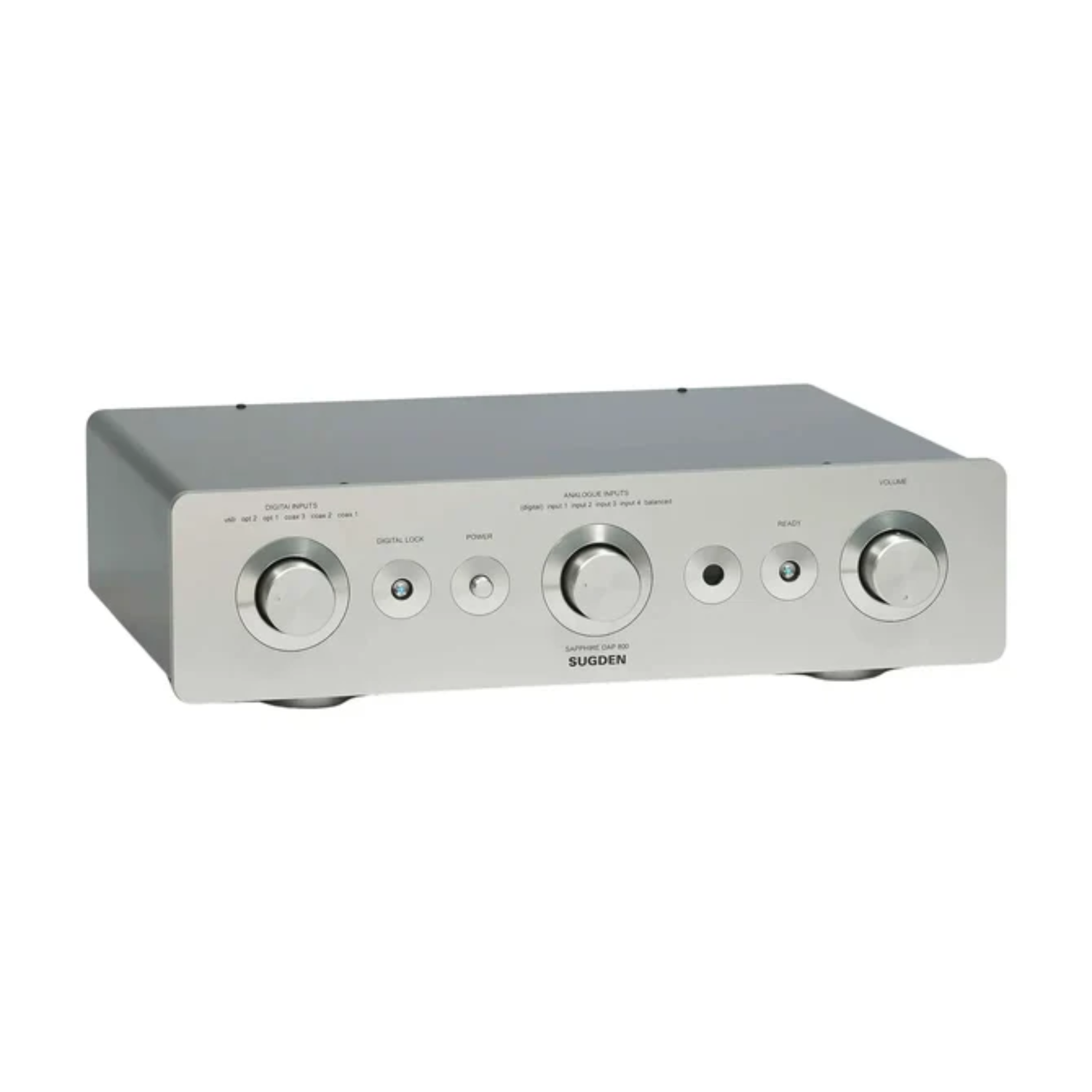

Sugden Sapphire DAP-800 Digital Analogue Preamplifier
Rs. 740,000.00
Unit price
/
Unavailable
Tax included
Summer Sale is Live!
- Free Shipping (India)
- Brand New Unit(s)
- Price Includes GST
- Official Manufacturers Warranty
- EMI Payment Option Available
Sugden Sapphire DAP-800 Digital Analogue Preamplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
No-Cost EMI Offer
No-Cost EMI Offer
Discover the Freedom of Zero-Cost EMI on Purchases above ₹30,000.
Warranty Information
Warranty Information
Experience the Peace of Mind with Official Manufacturers Warranty on Every Product.
Delivery and Shipping
Delivery and Shipping
In general, orders are delivered within 4-6 days. However, in some cases there might be a slight delay.
Description
Description
Sugden Sapphire DAP-800 – Digital Analogue Preamplifier
Hybrid Digital & Analog Preamp Design
Combines a high-quality analog preamplifier with a built-in DAC, allowing seamless integration of both digital and analog audio sources.
Extensive Connectivity Options
Features multiple analog and digital inputs including USB, optical, and coaxial connections, making it a complete control center for modern audio systems.
Separate Analog & Digital Circuits
Independent power supplies for analog and digital sections reduce interference and ensure cleaner, more accurate sound reproduction.
Advanced Sugden VCV Circuit
Utilizes a high-impedance input stage with current gain and Class A output for exceptional transparency, dynamics, and musical detail.
High-End DAC Performance
Integrated DAC technology delivers natural, analog-like sound with precise digital-to-analog conversion.
Wide Frequency Response & Low Distortion
Engineered for high fidelity with extended bandwidth and minimal distortion, preserving detail across the full audio spectrum.
Balanced & Unbalanced Outputs
Includes both balanced (XLR) and single-ended outputs for flexible system integration.
Motorized Volume Control with Remote
Precision volume adjustment with remote control support for convenient operation.
Premium Audiophile Build Quality
Solid construction with high-quality components, designed for serious hi-fi enthusiasts and reference-level systems.
Additional Information
Additional Information
Specification
Details
Product Name
Sugden Sapphire DAP-800 Digital Analogue Preamplifier
Type
Digital + Analogue Preamplifier with Built-in DAC
Design
Dual-Domain Design (Separate Analogue & Digital Circuits)
Amplifier Stage
Class A Analogue Output Stage (VCV Circuit)

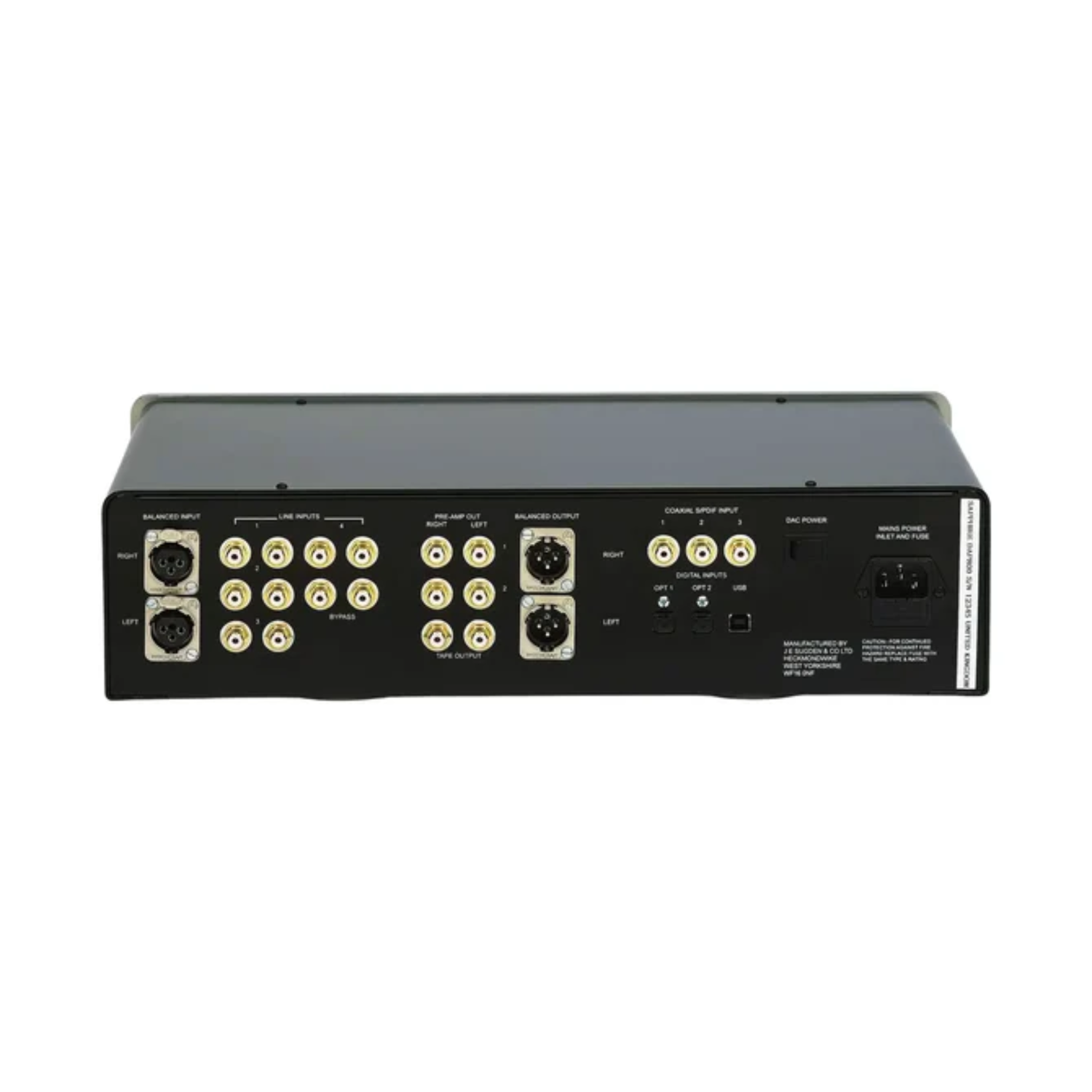

Analogue Inputs
4 x RCA, 1 x Balanced XLR, Bypass Input
Digital Inputs
3 x Coaxial (SPDIF), 2 x Optical (Toslink), 1 x USB-B
Outputs
2 x RCA Line Out, 1 x Balanced XLR Out, Tape Output
DAC Architecture
Non-oversampling DAC with Analogue Filtering
Supported Formats
Up to 24-bit / 96kHz (SPDIF), USB up to 16-bit / 44.1kHz
Input Sensitivity
120 mV (for 1V output)
Maximum Output
9 Volts
Frequency Response
15Hz – 98kHz (0dB)
Bandwidth
8Hz – 125kHz
Signal to Noise Ratio
>85 dB
Distortion
<0.05% @ 1kHz
Volume Control
Motorised Analogue Volume (Remote Controlled)
Power Supply
Separate Power Supplies for Digital & Analogue Sections
Dimensions
120 x 430 x 340 mm
Weight
~10 kg
Ideal Use
High-End Audiophile Systems, Digital + Analogue Source Integration
